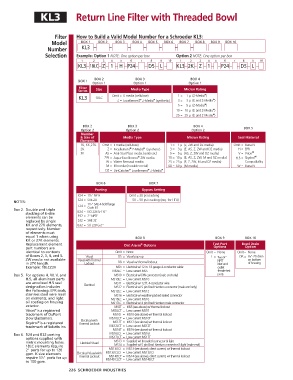

KL3 Return Line Filter with Threaded Bowl

Filter How to Build a Valid Model Number for a Schroeder KL3:
Model BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9 BOX 10
Number KL3 – – – – – – –
Selection Example: Option 1 NOTE: One option per box Option 2 NOTE: One option per box
1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10
KL3–18LC– Z – 1 – H –P24– – D5 – L – KL3–2K– Z – 1 – –P24– – D5 – L –

BOX 2 BOX 3 BOX 4
BOX 1
Option 1 Option 1 Option 1
Filter
Series Size Media Type Micron Rating
®
KL3 18 LC Omit = E media (cellulose) ® 1 = 1 μ (Z-Media )
®
®
Z = Excellement Z-Media (synthetic) 3 = 3 μ (E and Z-Media )
®
5 = 5 μ (Z-Media )
®
10 = 10 μ (E and Z-Media )
®
25 = 25 μ (E and Z-Media )
BOX 2 BOX 3 BOX 4 BOX 5
Option 2 Option 2 Option 2
Number
& Size of Media Type Micron Rating Seal Material
Elements
1K, KK,27K Omit = E media (cellulose) 1 = 1 μ (Z, ZW and DZ media) Omit = Buna N
®
®
2K Z = Excellement Z-Media (synthetic) 3 = 3 μ (E, AS, Z, ZW and DZ media) H = EPR
3K AS = Anti-Stat Pleat media (synthetic) 5 = 5 μ (AS, Z, ZW and DZ media) V = Viton ®
®
®
ZW = Aqua-Excellement ZW media 10 = 10 μ (E, AS, Z, ZW, M and DZ media) H.5 = Skydrol
W = Water Removal media 25 = 25 μ (E, Z, ZW, M and DZ media) Compatibility
M = M media (reusable metal) 60 = 60 μ (M media) W = Buna N
®
®
DZ = DirtCatcher Excellement Z-Media ®
BOX 6 BOX 7
Porting Bypass Setting
P24 = 1½" NPTF Omit = 30 psi cracking
NOTES: S24 = SAE-24 50 = 50 psi cracking (req. for HF4)
F24 = 1½" SAE 4-bolt flange
Code 61
Box 2. Double and triple B24 = ISO 228 G-1½"
stacking of K-size
elements can be P32 = 2" NPTF
replaced by single S32 = SAE-32
KK and 27K elements, B32 = SO 228 G-2"
respectively. Number
of elements must
equal 1 when using BOX 8 BOX 9 BOX 10
KK or 27K elements.
Replacement element Dirt Alarm Options Test Port Bowl Drain
®
part numbers are Options Option
identical to contents Omit = None Omit = None Omit = None
of Boxes 2, 3, 4, and 5. Visual D5 = Visual pop-up L = Two ⁄4" DR = ⁄16"-20 drain
7
1
ZW media not available Visual with Thermal NPTF on bottom
in 27K length. Lockout D8 = Visual w/ thermal lockout inlet and of housing
Example: 18LCZ3V MS5 = Electrical w/ 12 in. 18 gauge 4-conductor cable outlet
MS5LC = Low current MS5 female test
Box 5. For options H, W, V, and MS10 = Electrical w/ DIN connector (male end only) ports
H.5, all aluminum parts MS10LC = Low current MS10
are anodized.H.5 seal Electrical MS11 = Electrical w/ 12 ft. 4-conductor wire
designation includes MS12 = Electrical w/ 5 pin Brad Harrison connector (male end only)
the following: EPR seals, MS12LC = Low current MS12
stainless steel wire mesh MS16 = Electrical w/ weather-packed sealed connector
on elements, and light MS16LC = Low current MS16
oil coating on housing MS17LC = Electrical w/ 4 pin Brad Harrison male connector
exterior. MS5T = MS5 (see above) w/ thermal lockout
Viton is a registered MS5LCT = Low current MS5T
®
trade mark of DuPont MS10T = MS10 (see above) w/ thermal lockout
Dow Elastomers. Electrical with MS10LCT = Low current MS10T
Skydrol is a registered Thermal Lockout MS12T = MS12 (see above) w/ thermal lockout
®
trade mark of Solutia Inc. MS12LCT = Low current MS12T
MS16T = MS16 (see above) w/ thermal lockout
Box 6. B24 and B32 porting MS16LCT = Low current MS16T
options supplied with MS17LCT = Low current MS17T
metric mounting holes. Electrical Visual MS13 = Supplied w/ threaded connector & light
18LC elements require MS14 = Supplied w/ 5 pin Brad Harrison connector & light (male end)
2" ports for up to 120 MS13DCT = MS13 (see above), direct current, w/ thermal lockout
gpm. K size elements Electrical Visual with MS13DCLCT = Low current MS13DCT
MS14DCT = MS14 (see above), direct current, w/ thermal lockout
require 1 ⁄2" ports for up Thermal Lockout MS14DCLCT = Low current MS14DCT
1
to 100 gpm.
226 SCHROEDER INDUSTRIES
