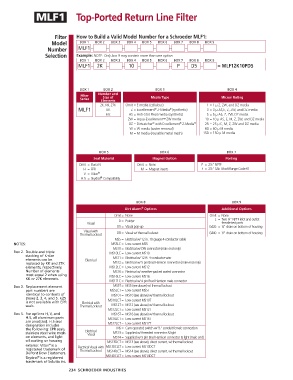

Page 236 - Schroeder - Hydraulic And Lube Filtration

MLF1 Top-Ported Return Line Filter

Filter How to Build a Valid Model Number for a Schroeder MLF1:
Model BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9
Number MLF1– – – – – – – –
Selection Example: NOTE: Only box 9 may contain more than one option
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9
MLF1– 2K – – 10 – – – P – D5 – = MLF12K10PD5

BOX 1 BOX 2 BOX 3 BOX 4
Filter Number and Media Type Micron Rating
Size of
Series Elements
2K, KK, 27K Omit = E media (cellulose) 1 = 1 µ Z, ZW, and DZ media
MLF1 4 K Z = Excellement Z-Media (synthetic) 3 = 3 µ AS,E, Z, ZW, and DZ media
®
®
6 K AS = Anti-Stat Pleat media (synthetic) 5 = 5 µ AS, Z, ZW, DZ media
ZW = Aqua-Excellement ZW media 10 = 10 µ AS, E, M, Z, ZW, and DZ media
TM
DZ = Dirtcatcher with Excellement Z-Media ® 25 = 25 µ E, M, Z, ZW and DZ media
®
®
W = W media (water removal) 60 = 60 µ M media
M = M media (reusable metal mesh) 150 = 150 µ M media
BOX 5 BOX 6 BOX 7
Seal Material Magnet Option Porting
1
Omit = Buna N Omit = None P = 2 ⁄2" NPTF
1
H = EPR M = Magnet inserts F = 2 ⁄2" SAE 4-bolt flange Code 61
V = Viton ®
®
H.5 = Skydrol Compatibility

BOX 8 BOX 9
®
Dirt Alarm Options Additional Options
Omit = None Omit = None
1
D = Pointer L = Two ⁄4" NPTF inlet and outlet
Visual female test ports
3
D5 = Visual pop-up G426 = ⁄4" drain on bottom of housing
Visual with 1
Thermal Lockout D8 = Visual w/ thermal lockout G440 = ⁄2" drain on bottom of housing
MS5 = Electrical w/ 12 in. 18 gauge 4-conductor cable
NOTES: MS5LC = Low current MS5
MS10 = Electrical w/ DIN connector (male end only)
Box 2. Double and triple MS10LC = Low current MS10
stacking of K-size
elements can be Electrical MS11 = Electrical w/ 12 ft. 4-conductor wire
replaced by KK and 27K MS12 = Electrical w/ 5 pin Brad Harrison connector (male end only)
elements, respectively. MS12LC = Low current MS12
Number of elements MS16 = Electrical w/ weather-packed sealed connector
must equal 2 when using MS16LC = Low current MS16
KK or 27K elements.
MS17LC = Electrical w/ 4 pin Brad Harrison male connector
Box 3. Replacement element MS5T = MS5 (see above) w/ thermal lockout
part numbers are MS5LCT = Low current MS5T
identical to contents of MS10T = MS10 (see above) w/ thermal lockout
Boxes 2, 3, 4, and 5. K25 MS10LCT = Low current MS10T
is not available with EPR Electrical with
seals. Thermal Lockout MS12T = MS12 (see above) w/ thermal lockout
MS12LCT = Low current MS12T
Box 5. For options H, V, and MS16T = MS16 (see above) w/ thermal lockout
H.5, all aluminum parts MS16LCT = Low current MS16T
are anodized. H.5 seal MS17LCT = Low current MS17T
designation includes
1
the following: EPR seals, Electrical MS = Cam operated switch w/ ⁄2" conduit female connection
stainless steel wire mesh Visual MS13 = Supplied w/ threaded connector & light
on elements, and light MS14 = Supplied w/ 5 pin Brad Harrison connector & light (male end)
oil coating on housing MS13DCT = MS13 (see above), direct current, w/ thermal lockout
exterior. Viton is a Electrical Visual with MS13DCLCT = Low current MS13DCT
®
registered trade mark of Thermal Lockout MS14DCT = MS14 (see above), direct current, w/ thermal lockout
DuPont Dow Elastomers.
®
Skydrol is a registered MS14DCLCT = Low current MS14DCT
trade mark of Solutia Inc.
