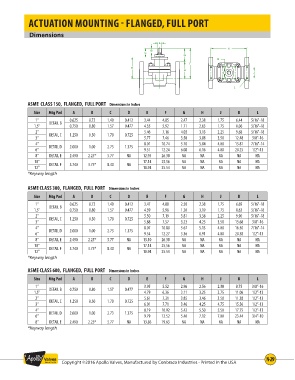

Page 29 - Apollo - Top Entry Ball Valves

ACTUATION MOUNTING - FLANGED, FULL PORT

Dimensions

A
K
B
C
G
D
F
E
H
J

L

ASME CLASS 150, FLANGED, FULL PORT Dimensions in Inches
Size Mtg Pad A B C D E F G H J K L
1" DETAIL B 0.625 0.72 1.40 0.412 3.44 4.85 2.47 2.38 1.75 6.44 5/16"-18
1.5" 0.750 0.80 1.57 0.477 4.35 5.92 1.71 2.63 1.75 8.06 5/16"-18
2" 5.46 7.16 4.03 3.13 2.25 9.68 5/16"-18
3" DETAIL C 1.250 0.50 1.70 0.725 5.77 7.46 3.58 3.88 3.50 12.48 3/8"-16
4" DETAIL D 2.000 1.00 2.73 1.375 8.01 10.74 5.70 5.04 4.00 15.81 7/16"-14
6" 9.51 12.24 6.08 6.16 4.00 20.25 1/2"-13
8" DETAIL E 2.490 2.25* 5.77 NA 12.95 26.38 NA NA NA NA NA
10" DETAIL F 3.740 3.75* 8.40 NA 17.14 25.56 NA NA NA NA NA
12" 18.94 25.54 NA NA NA NA NA
*Keyway length

ASME CLASS 300, FLANGED, FULL PORT Dimensions in Inches
Size Mtg Pad A B C D E F G H J K L
1" DETAIL B 0.625 0.72 1.40 0.412 3.47 4.88 2.50 2.38 1.75 6.69 5/16"-18
1.5" 0.750 0.80 1.57 0.477 4.39 5.96 1.20 3.19 1.75 8.63 5/16"-18
2" 5.50 7.19 3.81 3.38 2.25 9.90 5/16"-18
3" DETAIL C 1.250 0.50 1.70 0.725 5.88 7.57 3.23 4.25 3.50 13.68 3/8"-16
4" DETAIL D 2.000 1.00 2.73 1.375 8.07 10.80 5.67 5.13 4.00 16.50 7/16"-14
6" 9.54 12.27 5.36 6.91 4.00 20.38 1/2"-13
8" DETAIL E 2.490 2.25* 5.77 NA 13.10 26.38 NA NA NA NA NA
10" DETAIL F 3.740 3.75* 8.40 NA 17.14 25.56 NA NA NA NA NA
12" 18.94 25.54 NA NA NA NA NA
*Keyway length

ASME CLASS 600, FLANGED, FULL PORT Dimensions in Inches

Size Mtg Pad A B C D E F G H J K L
1" 3.95 5.52 2.96 2.56 2.38 8.75 3/8"-16
1.5" DETAIL B 0.750 0.80 1.57 0.477 4.79 6.36 3.11 3.25 2.75 11.06 1/2"-13
2" DETAIL C 1.250 0.50 1.70 0.725 5.61 7.31 3.85 3.46 3.50 11.38 1/2"-13
3" 6.01 7.71 3.46 4.25 4.75 15.56 1/2"-13
4" DETAIL D 2.000 1.00 2.73 1.375 8.19 10.92 5.42 5.50 5.50 17.75 1/2"-13
6" 9.79 12.52 5.40 7.12 7.00 23.44 3/4"-10
8" DETAIL E 2.490 2.25* 5.77 NA 13.86 19.63 NA NA NA NA NA
*Keyway length

N-29
