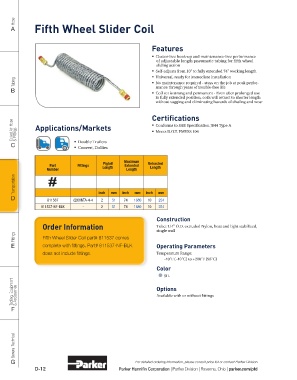

Page 254 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Hose
A Fifth Wheel Slider Coil

Features

ƒ Clutter-free hook-up and maintenance-free performance
of adjustable length pneumatic tubing for fifth wheel
sliding action
ƒ Self-adjusts from 10" to fully extended 74" working length
ƒ Universal, ready for immediate installation
Tubing ƒ No maintenance required - stays on the job at peak perfor-
mance through years of trouble-free life
B ƒ Coil set is strong and permanent - Even after prolonged use
in fully extended position, coils will retract to shorter length
without sagging and eliminating hazards of chafing and wear

Certifications
Coiled Air Hose & Fittings Applications/Markets ƒ Conforms to SAE Specification J844 Type A

ƒ Meets D.O.T. FMVSS 106

C ƒ Double Trailers
ƒ Convert, Dollies

Maximum
Pigtail Retracted
Part Fittings Extended
Number Length Length Length
Transportation

mm
D 811537 (2)68NTA-4-4 inch mm inch 1880 inch mm
254
10
2
51
74
811537-NF-BLK - 2 51 74 1880 10 254
Construction
Order Information Tube: 1/4" O.D. extruded Nylon, heat and light stabilized,
single wall
Fittings Fifth Wheel Slider Coil part# 811537 comes
E complete with fittings. Part# 811537-NF-BLK Operating Parameters
does not include fittings. Temperature Range:
-40˚F (-40˚C) to +200˚F (93˚C)
Color

SIL
Tooling, Equipment & Accessories Options

Available with or without fittings

F

General Technical

G For detailed ordering information, please consult price list or contact Parflex Division.
D-12 Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd
