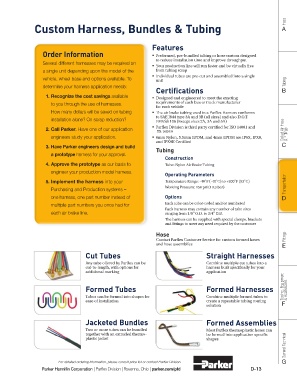

Page 255 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Custom Harness, Bundles & Tubing A Hose

Features
Order Information ƒ Preformed, pre-bundled tubing or hose custom designed
to reduce installation time and improve throughput
Several different harnesses may be required on
ƒ Your production line will run faster and be virtually free
a single unit depending upon the model of the from tubing scrap
ƒ Individual tubes are pre-cut and assembled into a single
vehicle, wheel base and options available. To unit Tubing
determine your harness application needs:
Certifications B
1. Recognize the cost savings available ƒ Designed and engineered to meet the exacting
to you through the use of harnesses. requirements of each bus or truck manufacturer
for each vehicle
How many dollars will be saved on tubing ƒ The air brake tubing used in a Parflex Harness conforms
to SAE J844 type 3A and 3B (all sizes) and also D.O.T.
installation alone? On scrap reduction? FMVSS 106 (Except sizes 2A, 3A and 5A)
2. Call Parker. Have one of our application ƒ Parflex Division is third party certified for ISO 14001 and Coiled Air Hose
TS 16949
engineers study your application. ƒ 6mm Nylon, 5.5mm EPDM, and 4mm EPDM are IP6X, IPX8, & Fittings
and IPX9K Certified
3. Have Parker engineers design and build Tubing C
a prototype harness for your approval.
Construction
4. Approve the prototype as our basis to Tube: Nylon Air Brake Tubing
engineer your production model harness. Operating Parameters
5. Implement the harness into your Temperature Range: -40˚F (-40˚C) to +200˚F (93˚C) Transportation
Purchasing and Production systems – Working Pressure: 150 psi (10.3 bar)
one harness, one part number instead of Options D
multiple part numbers you once had for Each tube can be color-coded and/or numbered
Each harness may contain any number of tube sizes
each air brake line. ranging from 1/8" O.D. to 3/4" O.D.
The harness can be supplied with special clamps, brackets
and fittings to meet any need required by the customer
Hose Fittings
Contact Parflex Customer Service for custom formed hoses
and hose assemblies E
Cut Tubes Straight Harnesses

Any tube offered by Parflex can be Combine multiple cut tubes into a
cut-to-length, with options for harness built specifically for your
additional marking application

Formed Tubes Formed Harnesses Tooling, Equipment & Accessories

Tubes can be formed into shapes for Combine multiple formed tubes to
ease of installation create a repeatable tubing routing
solution F

Jacketed Bundles Formed Assemblies
Two or more tubes can be bundled Most Parflex thermoplastic hoses can
together with an extruded thermo- be formed into application specific
General Technical
plastic jacket shapes

For detailed ordering information, please consult price list or contact Parflex Division. G
Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd D-13
