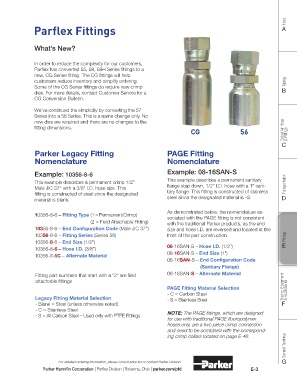

Hose
Parflex Fittings A

What’s New?

In order to reduce the complexity for our customers,
Parflex has converted 55, 58, 58H Series fittings to a
new, CG Series fitting. The CG fittings will help
customers reduce inventory and simplify ordering. Tubing
Some of the CG Series fittings do require new crimp
dies. For more details, contact Customer Service for a B
CG Conversion Bulletin.

We’ve continued the simplicity by converting the 57
Series into a 56 Series. This is a name change only. No
new dies are required and there are no changes to the
fitting dimensions.
CG 56 Coiled Air Hose & Fittings

C
Parker Legacy Fitting PAGE Fitting
Nomenclature Nomenclature

Example: 10356-8-6 Example: 08-16SAN-S
This example describes a permanent crimp 1/2" This example describes a permanent sanitary Transportation
Male JIC 37° with a 3/8" I.D. hose size. This flange step down, 1/2" I.D. hose with a 1" sani-
fitting is constructed of steel since the designated tary flange. This fitting is constructed of stainless
material is blank. steel since the designated material is -S. D

As demonstrated below, the nomenclature as-
10356-8-6 – Fitting Type (1 = Permanent/Crimp) sociated with the PAGE fitting is not consistent
(2 = Field Attachable Fitting) with the traditional Parker products, as the end
10356-8-6 – End Configuration Code (Male JIC 37°) size and hose I.D. are reversed and located at the
10356-8-6 – Fitting Series (Series 56) front of the part construction. Fittings
10356-8-6 – End Size (1/2")
10356-8-6 – Hose I.D. (3/8") 08-16SAN-S – Hose I.D. (1/2") E
10356-8-6C – Alternate Material 08-16SAN-S – End Size (1")
08-16SAN-S – End Configuration Code
(Sanitary Flange)
Fitting part numbers that start with a “2” are field 08-16SAN-S – Alternate Material
attachable fittings
PAGE Fitting Material Selection Tooling, Equipment & Accessories
- C = Carbon Steel
Legacy Fitting Material Selection - S = Stainless Steel
- Blank = Steel (unless otherwise noted) F
- C = Stainless Steel
- S = All Carbon Steel – Used only with PTFE Fittings NOTE: The PAGE fittings, which are designed
for use with traditional PAGE fluoropolymer
hoses only, are a two piece crimp connection
and need to be combined with the correspond-
General Technical
ing crimp collars located on page E-46.

For detailed ordering information, please consult price list or contact Parflex Division. G
