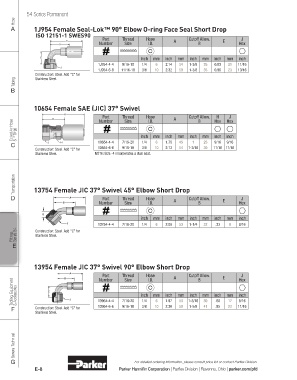

Page 266 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

54 Series Permanent
Hose
A 1J954 Female Seal-Lok™ 90° Elbow O-ring Face Seal Short Drop
ISO 12151-1 SWES90
Part Thread Hose A Cutoff Allow. E J
Number Size I.D. B Hex

E inch mm inch mm inch mm inch mm inch
1J954-4-4 9/16-18 1/4 6 2.14 54 1-3/8 35 0.83 21 11/16
J
1J954-6-6 11/16-16 3/8 10 2.32 59 1-3/8 35 0.90 23 13/16
Construction: Steel. Add “C” for
Tubing Stainless Steel.
B

10654 Female SAE (JIC) 37° Swivel
A Number Thread Hose A Cutoff Allow. Hex Hex
Part
H
J
B
Coiled Air Hose & Fittings inch mm inch mm inch mm inch inch
B
I.D.
Size
C J H 10654-4-4 7/16-20 1/4 6 1.75 45 1 25 9/16 9/16
Construction: Steel. Add “C” for 10654-6-6 9/16-18 3/8 10 2.13 54 1-3/16 30 11/16 11/16
Stainless Steel. NOTE: Sizs -4 incorporates a dual seat.

Transportation 13754 Female JIC 37° Swivel 45° Elbow Short Drop

D Part Thread Hose Cutoff Allow. J
Number Size I.D. A B E Hex

inch mm inch mm inch mm inch mm inch
13754-4-4 7/16-20 1/4 6 2.08 53 1-1/4 32 .33 8 9/16
Fittings Series 54 Construction: Steel. Add “C” for
Stainless Steel.
E

13954 Female JIC 37° Swivel 90° Elbow Short Drop
J
Part Thread Hose A Cutoff Allow. E Hex
Size
B
I.D.
Number
Tooling, Equipment & Accessories inch mm inch mm inch mm inch mm inch
6
9/16
1-5/8
41
22
.85
13954-6-6
2.30
9/16-18
3/8
59
F Construction: Steel. Add “C” for 13954-4-4 7/16-20 1/4 10 1.97 50 1-3/16 30 .68 17 11/16
Stainless Steel.
General Technical
G For detailed ordering information, please consult price list or contact Parflex Division.
E-8 Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd
