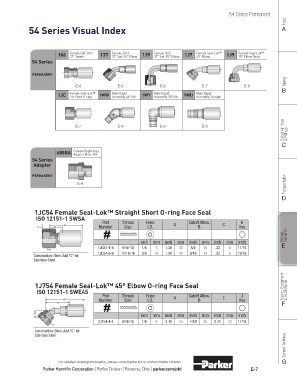

Page 265 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

54 Series Permanent
Hose
54 Series Visual Index A

Female SAE (JIC) Female (JIC) Female (JIC) Female Seal-Lok™ Female Seal-Lok™
106 37° Swivel 137 37° Swl, 45° Elbow 139 37° Swl, 90° Elbow 1J7 45° Elbow 1J9 90° Elbow Short
54 Series

PERMANENT
Tubing
E-8 E-8 E-8 E-7 E-8
1JC Female Seal-Lok™ 1WW Male Rapid 1WY Male Rapid 1WU Male Rapid B
Assembly, 90° Elb.
Assembly, 45° Elb.
Str. Short O-ring
Assembly, Straight
Coiled Air Hose & Fittings
E-7 E-9 E-9 E-9

C
Female Rapid Assy.
685RA Adapter Male SAE
54 Series
Adapter

PERMANENT
Transportation
E-9

D

1JC54 Female Seal-Lok™ Straight Short O-ring Face Seal
ISO 12151-1 SWSA
Part Thread Hose Cutoff Allow. H
A A C
C B Number Size I.D. B Hex
Fittings Series 54
inch mm inch mm inch mm inch mm inch
1JC54-4-4 9/16-18 1/4 6 1.38 35 5/8 16 .32 8 11/16 E
H
1JC54-6-6 11/16-16 3/8 10 1.58 40 9/16 14 .32 8 13/16
Construction: Steel. Add “C” for
Stainless Steel.

1J754 Female Seal-Lok™ 45° Elbow O-ring Face Seal Tooling, Equipment
ISO 12151-1 SWE45 & Accessories
Part Thread Hose Cutoff Allow. J
A Number Size I.D. A B E Hex
B F
E
inch mm inch mm inch mm inch mm inch
1J754-4-4 9/16-18 1/4 6 2.16 55 1-3/8 35 0.41 10 11/16
J
Construction: Steel. Add “C” for
General Technical
Stainless Steel.

For detailed ordering information, please consult price list or contact Parflex Division. G
Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd E-7
