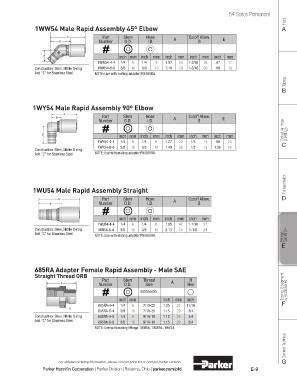

54 Series Permanent
54 Series Permanent
Hose
1WW54 Male Rapid Assembly 45º Elbow A

A Part Stem Hose A Cutoff Allow. E
B Number O.D. I.D. B

E inch mm inch mm inch mm inch mm inch mm
1WW54-4-4 1/4 6 1/4 6 1.97 50 1-3/16 30 .67 17
Construction: Steel, Nitrile O-ring. 1WW54-6-6 3/8 10 3/8 10 2.19 56 1-3/16 30 .69 18
Add “C” for Stainless Steel. NOTE: Use with mating adapter PN 685RA.
Tubing
B

1WY54 Male Rapid Assembly 90º Elbow
Part Stem Hose Cutoff Allow.
Coiled Air Hose
Number O.D. I.D. A B E

inch mm inch mm inch mm inch mm inch mm & Fittings
1WY54-4-4 1/4 6 1/4 6 1.27 32 1/2 13 .90 23 C
1WY54-6-6 3/8 10 3/8 10 1.49 38 1/2 13 1.00 25
Construction: Steel, Nitrile O-ring.
Add “C” for Stainless Steel. NOTE: Use with mating adapter PN 685RA.

Transportation

1WU54 Male Rapid Assembly Straight
Part Stem Hose Cutoff Allow. D
Number O.D. I.D. A B

inch mm inch mm inch mm inch mm
1WU54-4-4 1/4 6 1/4 6 1.85 47 1-1/16 27
Construction: Steel, Nitrile O-ring. 1WU54-6-6 3/8 10 3/8 10 2.13 54 1-1/8 29
Add “C” for Stainless Steel. NOTE: Use with mating adapter PN 685RA. Fittings Series 54
E

685RA Adapter Female Rapid Assembly - Male SAE
Straight Thread ORB
Part Stem Thread H
A Number O.D. Size A Hex Tooling, Equipment & Accessories

inch mm inch mm inch
685RA-4-4 1/4 6 7/16-20 1.05 27 11/16 F
H
685RA-6-4 3/8 10 7/16-20 1.15 29 3/4
Construction: Steel, Nitrile O-ring. 685RA-4-6 1/4 6 9/16-18 1.12 28 3/4
Add “C” for Stainless Steel. 685RA-6-6 3/8 10 9/16-18 1.15 29 3/4
NOTE: Use with mating fittings 1WU54, 1WW54, 1WY54.
General Technical

For detailed ordering information, please consult price list or contact Parflex Division. G
Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd E-9
