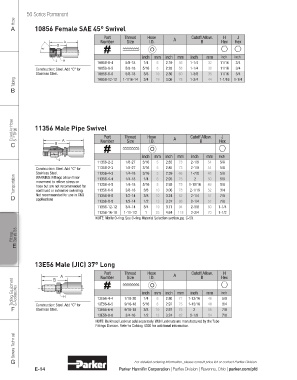

Page 272 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

56 Series Permanent
Hose
A 10856 Female SAE 45° Swivel

Part Thread Hose Cutoff Allow. H J
A Number Size I.D. A B Hex Hex
B
45
inch mm inch mm inch mm inch inch
J H
10856-6-4 5/8-18 1/4 6 2.19 56 1-1/4 32 11/16 3/4
Construction: Steel. Add “C” for 10856-6-5 5/8-18 5/16 8 2.28 58 1-1/4 32 11/16 3/4
Stainless Steel. 10856-6-6 5/8-18 3/8 10 2.36 60 1-3/8 35 11/16 3/4
Tubing 10856-12-12 1-1/16-14 3/4 19 3.06 78 1-3/4 44 1-1/16 1-1/4
B

Coiled Air Hose & Fittings 11356 Male Pipe Swivel Thread Hose Cutoff Allow. J

Part
C B A Number Size I.D. A B Hex

inch mm inch mm inch mm inch
J
11356-2-2 1/8-27 3/16 5 2.85 73 2-1/8 54 5/8
Construction: Steel. Add “C” for 11356-2-3 1/8-27 3/16 5 2.85 73 2-1/8 54 5/8
Stainless Steel. 11356-4-3 1/4-18 3/16 5 2.59 66 1-7/8 48 5/8
Transportation movement to relieve stress on 11356-4-4 1/4-18 5/16 10 2.95 75 1-15/16 50 5/8
WARNING: Fittings allow minor
1/4
6
2
8
49
1/4-18
5/8
2.95
11356-4-5
75
hose but are not recommended for
2-1/16
78
3/4
52
3/8-18
3/8
3.06
11356-6-6
continued or extensive swiveling.
D Not recommended for use in CNG 11356-8-6 1/2-14 3/8 10 3.24 82 2-1/4 57 7/8
applications
11356-8-8 1/2-14 1/2 13 3.37 86 2-1/4 57 7/8
11356-12-12 3/4-14 3/4 19 3.71 94 2-3/8 60 1-1/4
11356-16-16 1-11-1/2 1 25 4.64 118 2-3/4 70 1-1/2
NOTE: Nitrile O-ring. See O-ring Material Selection section, pg. G-50.
Fittings Series 56
E
13E56 Male (JIC) 37° Long
Part Thread Hose Cutoff Allow. H
A Number Size I.D. A B Hex
B
Tooling, Equipment & Accessories H 13E56-4-4 7/16-20 inch mm inch mm 1-13/16 mm inch
inch
2.80
46
71
5/8
6
1/4
8
F Construction: Steel. Add “C” for 13E56-6-5 9/16-18 5/16 10 2.97 75 1-15/16 49 3/4
Stainless Steel.
13E56-6-6
2
7/8
50
9/16-18
75
3/8
2.97
13E56-8-8 3/4-16 1/2 13 3.24 82 2-1/8 54 7/8
NOTE: Bulkhead Locknut sold separately. WLN Locknuts are manufactured by the Tube
Fittings Division. Refer to Catalog 4300 for additional information.
General Technical
G For detailed ordering information, please consult price list or contact Parflex Division.
E-14 Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd
