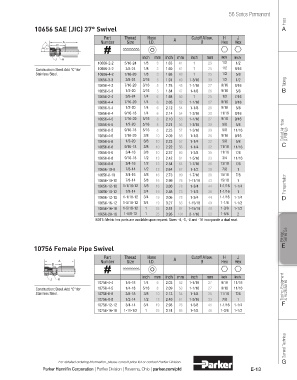

Page 271 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

56 Series Permanent
Hose
10656 SAE (JIC) 37° Swivel A

Part Thread Hose Cutoff Allow. H J
A Number Size I.D. A B Hex Hex
B
45 37
inch mm inch mm inch mm inch inch
J H
10656-2-2 5/16-24 1/8 3 1.63 41 1 25 1/2 1/2
Construction: Steel. Add “C” for 10656-3-2 3/8-24 1/8 3 1.60 41 1 25 1/2 9/16
Stainless Steel. 10656-4-2 7/16-20 1/8 3 1.68 43 1 25 1/2 5/8
10656-3-3 3/8-24 3/16 5 1.91 49 1-3/16 30 1/2 1/2 Tubing
10656-4-3 7/16-20 3/16 5 1.78 45 1-1/16 27 9/16 9/16
10656-5-3 1/2-20 3/16 5 1.84 47 1-1/8 28 9/16 5/8 B
10656-2-4 3/8-24 1/4 6 1.98 50 1 25 1/2 7/16
10656-4-4 7/16-20 1/4 6 2.05 52 1-1/16 27 9/16 9/16
10656-5-4 1/2-20 1/4 6 2.12 54 1-1/8 28 9/16 5/8
10656-6-4 9/16-18 1/4 6 2.14 54 1-3/16 30 11/16 9/16
10656-4-5 7/16-20 5/16 8 2.10 53 1-1/16 27 9/16 9/16
10656-5-5 1/2-20 5/16 8 2.21 56 1-3/16 30 5/8 5/8
10656-6-5 9/16-18 5/16 8 2.23 57 1-3/16 30 5/8 11/16 Coiled Air Hose
10656-4-6 7/16-20 3/8 10 2.09 53 1-1/8 28 9/16 9/16 & Fittings
10656-5-6 1/2-20 3/8 10 2.23 57 1-1/4 32 5/8 5/8
10656-6-6 9/16-18 3/8 10 2.22 56 1-1/4 32 11/16 11/16 C
10656-8-6 3/4-16 3/8 10 2.37 60 1-3/8 35 11/16 7/8
10656-6-8 9/16-18 1/2 13 2.42 61 1-5/16 33 3/4 11/16
10656-8-8 3/4-16 1/2 13 2.54 64 1-7/16 36 13/16 7/8
10656-10-8 7/8-14 1/2 13 2.64 67 1-1/2 38 7/8 1
10656-8-10 3/4-16 5/8 16 2.73 69 1-7/16 36 15/16 7/8
10656-10-10 7/8-14 5/8 16 2.99 76 1-11/16 43 15/16 1
10656-12-10 1-1/16-12 5/8 16 3.06 78 1-3/4 44 1-1/16 1-1/4 Transportation
10656-10-12 7/8-14 3/4 19 2.88 73 1-1/2 38 1-1/16 1
10656-12-12 1-1/16-12 3/4 19 3.06 78 1-3/4 44 1-1/16 1-1/4 D
10656-16-12 1-5/16-12 3/4 19 3.27 83 1-15/16 49 1-1/4 1-1/2
10656-16-16 1-5/16-12 1 25 3.81 97 1-15/16 49 1-3/8 1-1/2
10656-20-16 1-5/8-12 1 25 3.96 101 2-1/16 52 1-5/8 2
NOTE: Metric hex parts are available upon request. Sizes -4, -5, -8 and -10 incorporate a dual seat.

Fittings Series 56

10756 Female Pipe Swivel E

Part Thread Hose Cutoff Allow. H J
A Number Size I.D. A B Hex Hex
B

inch mm inch mm inch mm inch inch
J H
10756-4-4 1/4-18 1/4 6 2.03 52 1-1/16 27 9/16 11/16
Construction: Steel. Add “C” for 10756-4-5 1/4-18 5/16 8 2.09 53 1-1/16 27 9/16 11/16 Tooling, Equipment & Accessories
Stainless Steel. 10756-6-6 3/8-18 3/8 10 2.13 54 1-1/8 28 11/16 7/8
10756-8-8 1/2-14 1/2 13 2.40 61 1-5/16 33 7/8 1
10756-12-12 3/4-14 3/4 19 2.98 76 1-5/8 41 1-1/16 1-1/4 F
10756-16-16 1-11-1/2 1 25 3.74 95 1-7/8 48 1-3/8 1-1/2

General Technical

For detailed ordering information, please consult price list or contact Parflex Division. G
Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd E-13
