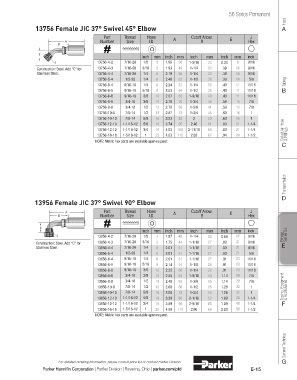

56 Series Permanent
Hose
13756 Female JIC 37° Swivel 45° Elbow A

Part Thread Hose A Cutoff Allow. E J
A Number Size I.D. B Hex
B
E
inch mm inch mm inch mm inch mm inch
J 13756-4-2 7/16-20 1/8 3 1.98 50 1-5/16 33 0.33 8 9/16
Construction: Steel. Add “C” for 13756-4-3 7/16-20 3/16 5 1.93 49 1-1/4 32 .39 10 9/16
Stainless Steel. 13756-4-4 7/16-20 1/4 6 2.19 56 1-1/4 32 .39 10 9/16
13756-5-4 1/2-20 1/4 6 2.46 62 1-1/2 38 .39 10 5/8
13756-6-4 9/16-18 1/4 6 2.24 57 1-1/4 32 .43 11 11/16 Tubing
13756-6-5 9/16-18 5/16 8 2.53 64 1-1/2 38 .43 11 11/16 B
13756-6-6 9/16-18 3/8 10 2.57 65 1-9/16 40 .43 11 11/16
13756-8-6 3/4-16 3/8 10 2.76 70 1-3/4 44 .59 15 7/8
13756-8-8 3/4-16 1/2 13 2.72 69 1-5/8 41 .59 15 7/8
13756-10-8 7/8-14 1/2 13 2.87 73 1-3/4 45 .63 16 1
13756-10-10 7/8-14 5/8 16 3.23 83 2 50 .63 16 1
61
.83
21
13756-12-10 1-1/16-12 5/8 16 3.74 95 2.40 57 Series Permanent 1-1/4
13756-12-12 1-1/16-12 3/4 19 4.03 102 2-11/16 68 .83 21 1-1/4 Coiled Air Hose
13756-16-16 1-5/16-12 1 25 4.53 115 2.63 67 .94 24 1-1/2 & Fittings
NOTE: Metric hex parts are available upon request.
C

Transportation

D
13956 Female JIC 37° Swivel 90° Elbow

A Part Thread Hose A Cutoff Allow. E J
B Number Size I.D. B Hex

E
inch mm inch mm inch mm inch mm inch
J 13956-4-2 7/16-20 1/8 3 1.87 48 1-1/4 32 0.68 17 9/16 Fittings Series 56
Construction: Steel. Add “C” for 13956-4-3 7/16-20 3/16 5 1.75 44 1-1/16 27 .83 21 9/16
Stainless Steel. 13956-4-4 7/16-20 1/4 6 2.01 51 1-1/16 27 .83 21 9/16 E
13956-5-4 1/2-20 1/4 6 2.01 51 1-1/16 27 .83 21 5/8
13956-6-4 9/16-18 1/4 6 2.01 51 1-1/16 27 .91 23 11/16
13956-6-5 9/16-18 5/16 8 2.14 54 1-1/8 28 .91 23 11/16
13956-6-6 9/16-18 3/8 10 2.22 56 1-1/4 32 .91 23 11/16
13956-8-6 3/4-16 3/8 10 2.55 65 1-9/16 40 1.14 29 7/8
13956-8-8 3/4-16 1/2 13 2.48 63 1-3/8 35 1.14 29 7/8
13956-10-8 7/8-14 1/2 13 2.60 66 1-1/2 38 1.26 32 1 Tooling, Equipment
13956-10-10 7/8-14 5/8 16 3.08 78 1-3/4 45 1.26 32 1 & Accessories
13956-12-10 1-1/16-12 5/8 19 3.39 86 2-1/16 52 1.89 48 1-1/4
13956-12-12 1-1/16-12 3/4 19 3.89 99 2-9/16 65 1.89 48 1-1/4 F
13956-16-16 1-5/16-12 1 25 4.50 114 2.60 66 2.20 56 1-1/2
NOTE: Metric hex parts are available upon request.

General Technical

For detailed ordering information, please consult price list or contact Parflex Division. G
