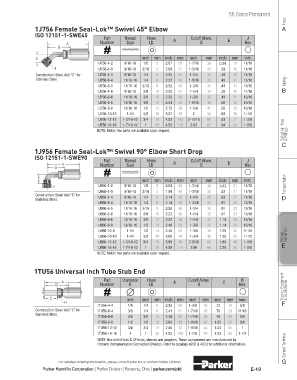

Page 277 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

56 Series Permanent
Hose
1J756 Female Seal-Lok™ Swivel 45° Elbow A
ISO 12151-1-SWE45 Part Thread Hose Cutoff Allow. J

A Number Size I.D. A B E Hex
B
E inch mm inch mm inch mm inch mm inch
1J756-4-2 9/16-18 1/8 3 2.07 53 1-7/16 36 0.39 10 11/16
J 1J756-4-3 9/16-18 3/16 5 2.00 51 1-5/16 33 .39 10 11/16
Construction: Steel. Add “C” for 1J756-4-4 9/16-18 1/4 6 2.25 57 1-1/4 32 .39 10 11/16
Stainless Steel. 1J756-6-4 11/16-16 1/4 6 2.27 58 1-5/16 33 .43 11 13/16 Tubing
1J756-6-5 11/16-16 5/16 8 2.32 59 1-3/8 35 .43 11 13/16
1J756-4-6 9/16-18 3/8 10 2.25 57 1-1/4 32 .39 10 11/16 B
1J756-6-6 11/16-16 3/8 10 2.35 60 1-3/8 35 .43 11 13/16
1J756-8-6 13/16-16 3/8 10 2.54 65 1-9/16 40 .59 15 15/16
1J756-8-8 13/16-16 1/2 13 2.72 69 1-5/8 41 .59 15 15/16
1J756-10-10 1-14 5/8 16 3.27 83 2 50 .63 16 1-1/8
1J756-12-12 1-3/16-12 3/4 19 4.03 102 2-11/16 68 .83 21 1-3/8
1J756-16-16 1-7/16-12 1 25 4.53 115 2.63 67 .94 24 1-5/8
NOTE: Metric hex parts are available upon request. Coiled Air Hose & Fittings

C
1J956 Female Seal-Lok™ Swivel 90° Elbow Short Drop
ISO 12151-1-SWE90 Part Thread Hose Cutoff Allow. J
A Number Size I.D. A B E Hex
B

E inch mm inch mm inch mm inch mm inch
J 1J956-4-2 9/16-18 1/8 3 2.04 52 1-7/16 36 0.83 21 11/16 Transportation
1J956-4-3 9/16-18 3/16 5 1.89 48 1-3/16 30 .83 21 11/16
Construction: Steel. Add “C” for 1J956-4-4 9/16-18 1/4 6 2.14 53 1-1/8 28 .83 21 11/16
Stainless Steel. D
1J956-6-4 11/16-16 1/4 6 2.14 55 1-3/16 30 .91 23 13/16
1J956-6-5 11/16-16 5/16 8 2.28 58 1-1/4 32 .91 23 13/16
1J956-6-6 11/16-16 3/8 10 2.22 56 1-1/4 32 .91 23 13/16
1J956-8-6 13/16-16 3/8 10 2.22 56 1-1/4 32 1.14 29 15/16
1J956-8-8 13/16-16 1/2 13 2.48 63 1-3/8 35 1.14 29 15/16
1J956-10-8 1-14 1/2 13 2.48 63 1-3/8 35 1.26 32 1-1/8
1J956-10-10 1-14 5/8 16 3.08 78 1-3/4 45 1.26 32 1-1/8 Fittings Series 56
1J956-12-12 1-3/16-12 3/4 19 3.89 99 2-9/16 65 1.89 48 1-3/8
1J956-16-16 1-7/16-12 1 25 4.50 114 2.60 66 2.20 56 1-5/8 E
NOTE: Metric hex parts are available upon request.

1TU56 Universal Inch Tube Stub End

A Part Diameter Hose A Cutoff Allow. C H
B Number R I.D. B Hex Tooling, Equipment
R & Accessories
C mm inch mm inch mm inch mm inch mm inch
H F
1TU56-4-4 1/4 1/4 6 2.35 60 1-3/8 35 .72 18 5/8
Construction: Steel. Add “C” for 1TU56-6-4 3/8 1/4 6 2.41 61 1-7/16 36 .78 20 11/16
Stainless Steel.
1TU56-6-6 3/8 3/8 10 2.46 62 1-7/16 36 .78 20 3/4
1TU56-8-8 1/2 1/2 13 2.68 68 1-9/16 40 1.03 26 3/4
1TU56-12-12 3/4 3/4 19 2.88 73 1-9/16 40 1.03 26 1
1TU56-16-16 1 1 25 4.03 102 1-7/8 48 1.03 26 1-1/4
General Technical
NOTE: Use with A-Lok & CPI nuts, sleeves and adapters. These components are manufactured by
Parker’s Instrumentation Connectors Division. Refer to catalogs 4230 & 4233 for additional information.

For detailed ordering information, please consult price list or contact Parflex Division. G
Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd E-19
