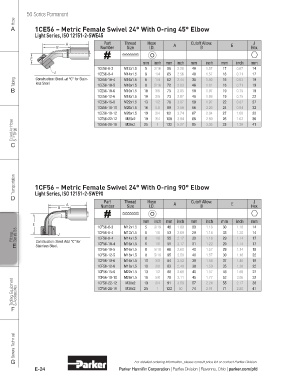

Page 282 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

56 Series Permanent
Hose
A 1CE56 – Metric Female Swivel 24° With O-ring 45° Elbow
Light Series, ISO 12151-2-SWE45

A Part Thread Hose A Cutoff Allow. E J
B Number Size I.D. B Hex
E
mm inch mm inch mm inch mm inch mm
1CE56-6-3 M12x1.5 5 3/16 58 2.28 40 1.57 17 0.67 14
J 1CE56-8-4 M14x1.5 6 1/4 65 2.56 40 1.57 18 0.71 17
Tubing Construction: Steel. Add “C” for Stain- 1CE56-10-4 M16x1.5 6 8 5/16 62 2.44 38 1.50 16 0.63 19
1/4
less Steel.
46
72
2.83
0.71
19
18
1.81
1CE56-10-5
M16x1.5
B 1CE56-10-6 M16x1.5 10 3/8 75 2.95 50 1.97 19 0.75 19
1CE56-12-6 M18x1.5 10 3/8 73 2.87 48 1.89 19 0.75 22
1CE56-15-8 M22x1.5 13 1/2 78 3.07 50 1.97 22 0.87 27
1CE56-18-10 M26x1.5 16 5.8 89 3.50 56 2.20 24 0.94 32
1CE56-18-12 M26x1.5 19 3/4 101 3.74 67 2.64 27 1.06 32
2.60
36
3/4
19
M30x2
3.94
66
26
1CE56-22-12
1.02
100
Coiled Air Hose & Fittings 1CE56-28-16 M36x2 25 1 133 5.27 85 3.35 33 1.30 41
C
Transportation 1CF56 – Metric Female Swivel 24° With O-ring 90° Elbow
D Light Series, ISO 12151-2-SWE90
J
Part
A Number Thread Hose A Cutoff Allow. E Hex
Size
B
I.D.
B
mm inch mm inch mm inch mm inch mm
E 1CF56-6-3 M12x1.5 5 3/16 48 1.89 30 1.18 30 1.18 14
Fittings Series 56 J 1CF56-6-4 M12x1.5 6 6 1/6 53 2.09 29 1.14 33 1.30 14
1.18
29
1.14
2.17
17
30
55
1CF56-8-4
M14x1.5
1/6
E Construction: Steel. Add “C” for 1CF56-10-4 M16x1.5 6 1/6 55 2.17 31 1.22 29 1.14 17
Stainless Steel.
1CF56-10-5 M16x1.5 8 5/16 66 2.60 40 1.57 29 1.14 19
1CF56-12-5 M18x1.5 8 5/16 65 2.56 40 1.57 30 1.18 22
1CF56-10-6 M16x1.5 10 3/8 64 2.52 39 1.54 37 1.46 19
1CF56-12-6 M18x1.5 10 3/8 63 2.48 38 1.50 35 1.38 22
1CF56-15-8 M22x1.5 13 1/2 68 2.68 40 1.57 43 1.69 27
1CF56-18-10 M26x1.5 16 5/8 79 3.11 45 1.77 52 2.05 32
Tooling, Equipment & Accessories 1CF56-28-16 M36x2 25 1 122 50 74 2.91 71 2.80 41
3/4
55
2.17
91
36
19
M30x2
2.24
1CF56-22-12
57
3.58
F
General Technical
G For detailed ordering information, please consult price list or contact Parflex Division.
E-24 Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd
