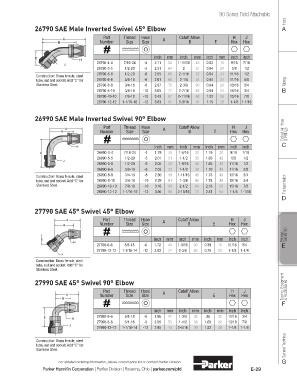

Page 287 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

90 Series Field Attachable
Hose
26790 SAE Male Inverted Swivel 45° Elbow A

Part Thread Hose A Cutoff Allow. H J
Number Size Size B E Hex Hex

inch mm inch mm inch mm inch inch
26790-4-4 7/16-24 -4 2.11 54 1-11/16 43 0.63 16 9/16 7/16
26790-5-5 1/2-20 -5 2.51 64 2 51 0.94 24 5/8 1/2
26790-5-6 1/2-20 -6 2.55 65 2-1/16 52 0.94 24 11/16 1/2
Construction: Brass ferrule, steel
tube, nut and socket. Add “C” for 26790-6-6 5/8-18 -6 2.61 66 2-1/8 54 0.94 24 11/16 5/8 Tubing
Stainless Steel. 26790-8-8 3/4-18 -8 2.97 75 2-3/8 60 0.94 24 13/16 3/4
26790-8-10 3/4-18 -10 3.05 77 2-7/16 62 0.94 24 15/16 3/4 B
26790-10-10 7/8-18 -10 3.43 87 2-11/16 68 1.02 26 15/16 7/8
26790-12-12 1-1/16-16 -12 3.83 97 3-3/16 81 1.15 29 1-1/8 1-1/16

26990 SAE Male Inverted Swivel 90° Elbow

Part Thread Hose Cutoff Allow. H J
Number Size Size A B E Hex Hex Coiled Air Hose & Fittings

inch mm inch mm inch mm inch inch C
26990-4-4 7/16-24 -4 1.79 45 1-5/16 33 1.19 30 9/16 7/16
26990-5-5 1/2-20 -5 2.01 51 1-1/2 38 1.65 42 5/8 1/2
26990-5-6 1/2-20 -6 2.05 52 1-9/16 40 1.65 42 11/16 1/2
26990-6-6 5/8-18 -6 2.03 52 1-1/2 38 1.70 43 11/16 5/8
Construction: Brass ferrule, steel 26990-8-8 3/4-18 -8 2.30 58 1-11/16 43 1.78 45 13/16 3/4
tube, nut and socket. Add “C” for 26990-8-10 3/4-18 -10 2.39 61 1-3/4 44 1.78 45 15/16 3/4
Stainless Steel. 26990-10-10 7/8-18 -10 3.16 80 2-1/2 64 2.18 55 15/16 7/8 Transportation
26990-12-12 1-1/16-16 -12 3.56 90 2-15/16 75 2.51 64 1-1/8 1-1/16
D

27790 SAE 45° Swivel 45° Elbow

Part Thread Hose A Cutoff Allow. H J
Number Size Size B E Hex Hex
Fittings Series 90
inch mm inch mm inch mm inch inch
27790-6-6 5/8-18 -6 1.72 44 1-3/16 30 0.39 10 11/16 3/4 E
27790-12-12 1-1/16-14 -12 3.03 77 2-3/8 60 0.78 20 1-1/8 1-1/4
Construction: Brass ferrule, steel
tube, nut and socket. Add “C” for
Stainless Steel.

27990 SAE 45° Swivel 90° Elbow Tooling, Equipment
Part Thread Hose A Cutoff Allow. H J & Accessories
Number Size Size B E Hex Hex
F
inch mm inch mm inch mm inch inch
27990-6-6 5/8-18 -6 1.86 47 1-3/8 35 .85 22 11/16 3/4
27990-8-8 3/4-16 -8 2.09 53 1-1/2 38 1.09 28 13/16 7/8
27990-12-12 1-1/16-14 -12 2.95 75 2-5/16 39 1.82 46 1-1/8 1-1/4

Construction: Brass ferrule, steel
tube, nut and socket. Add “C” for General Technical
Stainless Steel.

For detailed ordering information, please consult price list or contact Parflex Division. G
Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd E-29
