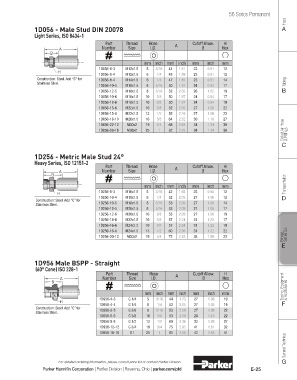

56 Series Permanent
Hose
1D056 - Male Stud DIN 20078 A
Light Series, ISO 8434-1
Part Thread Hose A Cutoff Allow. H
A Number Size I.D. B Hex
B

mm inch mm inch mm inch mm
1D056-6-3 M12x1.5 5 3/16 41 1.61 23 0.91 12
H
1D056-6-4 M12x1.5 6 1/4 48 1.89 23 0.91 12
Construction: Steel. Add “C” for 1D056-8-4 M14x1.5 6 1/4 47 1.85 23 0.91 14
Stainless Steel. Tubing
1D056-10-5 M16x1.5 8 5/16 50 1.97 24 0.94 17
1D056-12-5 M18x1.5 8 5/16 52 2.05 26 1.02 19 B
1D056-10-6 M16x1.5 10 3/8 50 1.97 24 0.94 17
1D056-12-6 M18x1.5 10 3/8 50 1.97 24 0.94 19
1D056-15-6 M22x1.5 10 3/8 52 2.05 27 1.06 22
1D056-15-8 M22x1.5 13 1/2 55 2.16 27 1.06 22
1D056-18-10 M26x1.5 16 5/8 64 2.52 30 1.18 27
Coiled Air Hose
1D056-22-12 M30x2 19 3/4 68 2.68 34 1.34 30
1D056-28-16 M36x2 25 1 82 3.23 34 1.34 36 & Fittings

C

1D256 - Metric Male Stud 24°
Heavy Series, ISO 12151-2
Part Thread Hose Cutoff Allow. H
A Number Size I.D. A B Hex
B

mm inch mm inch mm inch mm Transportation
H 1D256-8-3 M16x1.5 5 3/16 42 1.65 25 0.98 12
1D256-10-4 M18x1.5 6 1/4 52 2.05 27 1.06 12 D
Construction: Steel. Add “C” for
Stainless Steel. 1D256-10-5 M18x1.5 8 5/16 53 2.09 27 1.06 14
1D256-12-5 M20x1.5 8 5/16 53 2.09 27 1.06 17
1D256-12-6 M20x1.5 10 3/8 53 2.09 27 1.06 19
1D256-14-6 M22x1.5 10 3/8 57 2.24 31 1.22 17
1D256-16-6 M24x1.5 10 3/8 57 2.24 31 1.22 19
1D256-16-8 M24x1.5 13 1/2 60 2.36 31 1.22 22
1D256-20-12 M30x2 19 3/4 72 2.83 38 1.50 22 Fittings Series 56
E

1D956 Male BSPP - Straight
(60° Cone) ISO 228-1
Part Thread Hose Cutoff Allow. H
A Number Size I.D. A B Hex
B Tooling, Equipment

mm inch mm inch mm inch mm & Accessories
H 1D956-4-3 G 1/4 5 3/16 44 1.73 27 1.06 19
1D956-4-4 G 1/4 6 1/4 52 2.05 27 1.06 19 F
Construction: Steel. Add “C” for 1D956-6-5 G 3/8 8 5/16 53 2.09 27 1.06 22
Stainless Steel.
1D956-6-6 G 3/8 10 3/8 53 2.09 28 1.10 22
1D956-8-8 G 1/2 13 1/2 60 2.36 32 1.26 27
1D956-12-12 G 3/4 19 3/4 75 2.95 41 1.61 32
1D956-16-16 G 1 25 1 91 3.58 42 1.65 41
General Technical

For detailed ordering information, please consult price list or contact Parflex Division. G
