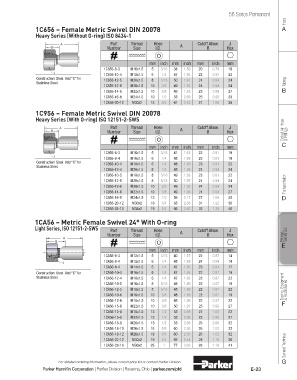

Page 281 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

56 Series Permanent
Hose
1C656 – Female Metric Swivel DIN 20078 A
Heavy Series (Without O-ring) ISO 8434-1

A Part Thread Hose A Cutoff Allow. J
B Number Size I.D. B Hex

mm inch mm inch mm inch mm
1C656-8-3 M16x1.5 5 3/16 38 1.50 20 0.79 19
J
1C656-10-4 M18x1.5 6 1/4 47 1.85 22 0.87 22
Construction: Steel. Add “C” for 1C656-12-5 M20x1.5 8 5/16 50 1.97 24 0.94 24
Stainless Steel. Tubing
1C656-12-6 M20x1.5 10 3/8 49 1.93 24 0.94 24
1C656-14-6 M22x1.5 10 3/8 49 1.93 23 0.89 27 B
1C656-16-8 M24x1.5 10 1/2 53 2.09 25 0.98 30
1C656-20-12 M30x2 13 3/4 61 2.40 27 1.06 36
1C956 – Female Metric Swivel DIN 20078
Heavy Series (With O-ring) ISO 12151-2-SWS
A Part Thread Hose A Cutoff Allow. J
B Number Size I.D. B Hex Coiled Air Hose & Fittings

mm inch mm inch mm inch mm C
1C956-8-3 M16x1.5 5 3/16 41 1.61 23 0.91 19
J 1C956-8-4 M16x1.5 6 1/4 48 1.89 23 0.91 19
Construction: Steel. Add “C” for 1C956-10-4 M18x1.5 6 1/4 48 1.89 23 0.91 22
Stainless Steel.
1C956-12-4 M20x1.5 6 1/4 48 1.89 24 0.94 24
1C956-10-5 M18x1.5 8 5/16 49 1.93 23 0.91 22
1C956-12-5 M20x1.5 8 5/16 50 1.97 24 0.94 24
1C956-12-6 M20x1.5 10 3/8 49 1.93 24 0.94 24 Transportation
1C956-14-6 M22x1.5 10 3/8 49 1.93 24 0.94 27
1C956-16-8 M24x1.5 13 1/2 56 2.17 27 1.06 30 D
1C956-20-12 M30x2 19 3/4 65 2.56 31 1.22 36
1C956-25-12 M36x2 19 3/4 66 2.60 32 1.30 46

1CA56 – Metric Female Swivel 24° With O-ring
Light Series, ISO 12151-2-SWS Part Thread Hose Cutoff Allow. J
Number Size I.D. A B Hex Series 56
A Fittings
B
E
mm inch mm inch mm inch mm
1CA56-6-3 M12x1.5 5 3/16 40 1.57 22 0.87 14
J 1CA56-6-4 M12x1.5 6 1/4 48 1.89 24 0.94 14
1CA56-8-4 M14x1.5 6 1/4 47 1.85 23 0.91 17
Construction: Steel. Add “C” for 1CA56-10-4 M16x1.5 6 1/4 47 1.85 22 0.87 19
Stainless Steel. 1CA56-12-4 M18x1.5 6 1/4 47 1.85 22 0.87 22
1CA56-10-5 M16x1.5 8 5/16 48 1.89 22 0.87 19 Tooling, Equipment
1CA56-12-5 M18x1.5 8 5/16 48 1.89 22 0.87 22 & Accessories
1CA56-10-6 M16x1.5 10 3/8 48 1.89 22 0.87 19
1CA56-12-6 M18x1.5 10 3/8 48 1.89 22 0.87 22 F
1CA56-15-6 M22x1.5 10 3/8 50 1.97 25 0.98 27
1CA56-12-8 M18x1.5 13 1/2 53 2.09 27 1.06 22
1CA56-15-8 M22x1.5 13 1/2 53 2.09 25 0.98 27
1CA56-18-8 M26x1.5 13 1/2 53 2.09 25 0.98 32
1CA56-18-10 M26x1.5 16 5/8 60 2.36 26 1.02 32
1CA56-18-12 M26x1.5 19 3/4 60 2.36 26 1.02 32
General Technical
1CA56-22-12 M30x2 19 3/4 62 2.44 28 1.10 36
1CA56-28-16 M36x2 25 1 77 3.03 28 1.10 41

For detailed ordering information, please consult price list or contact Parflex Division. G
Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd E-23
