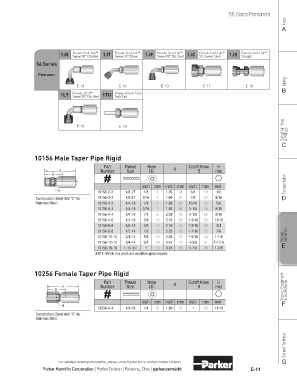

Page 269 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

56 Series Permanent
Hose
A

Female Seal-Lok ™ Female Seal-Lok ™ Female Seal-Lok ™ Female Seal-Lok ™ Female Seal-Lok ™
1J5 Swivel 90° Elb.Med. 1J7 Swivel 45° Elbow 1J9 Swivel 90° Elb.Short 1JC Str. Swivel Short 1JS Straight

56 Series

permAnent
Tubing
E-18 E-19 E-19 E-17 E-18
1L9 Female JIC 37° 1TU Universal Inch Tube B
Swivel 90° Elb. Med.
Stub End

Coiled Air Hose & Fittings
E-16 E-19

C

10156 Male Taper Pipe Rigid
Part Thread Hose Cutoff Allow. H
A Number Size I.D. A B Hex
B

inch mm inch mm inch mm inch Transportation
H 10156-2-2 1/8-27 1/8 3 1.35 34 3/4 19 1/2
Construction: Steel. Add “C” for 10156-2-3 1/8-27 3/16 5 1.60 41 7/8 22 9/16 D
Stainless Steel. 10156-4-2 1/4-18 1/8 3 1.56 40 15/16 24 5/8
10156-4-3 1/4-18 3/16 5 1.82 46 1-1/8 28 9/16
10156-4-4 1/4-18 1/4 6 2.09 53 1-1/8 28 9/16
10156-4-6 1/4-18 3/8 10 2.16 55 1-3/16 30 11/16
10156-6-6 3/8-18 3/8 10 2.16 55 1-3/16 30 3/4
10156-8-8 1/2-14 1/2 13 2.55 65 1-7/16 37 7/8
10156-12-10 3/4-14 5/8 16 2.88 73 1-9/16 40 1-1/8 Fittings Series 56
10156-12-12 3/4-14 3/4 19 2.97 75 1-5/8 41 1-1/16
10156-16-16 1-11-1/2 1 25 3.76 96 1-7/8 48 1-3/8 E
NOTE: Metric hex parts are available upon request.

10256 Female Taper Pipe Rigid

Part Thread Hose A Cutoff Allow. H
A Number Size I.D. B Hex Tooling, Equipment
B & Accessories

inch mm inch mm inch mm inch
H F
10256-4-4 1/4-18 1/4 6 1.99 51 1 25 11/16
Construction: Steel. Add “C” for
Stainless Steel.

General Technical

For detailed ordering information, please consult price list or contact Parflex Division. G
Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd E-11
