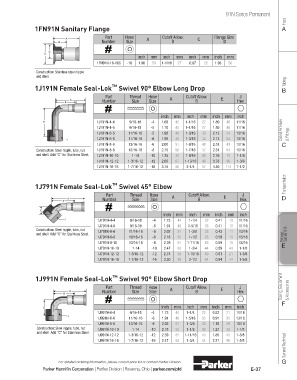

Page 295 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

91N Series Permanent
Hose
1FN91N Sanitary Flange A

Part Hose Cutoff Allow. Flange Size
Number Size A B C D

inch mm inch mm inch mm inch mm
1FN91N-16-16C -16 1.96 50 1-1/16 27 0.87 22 1.98 50
Construction: Stainless steel nipple
and shell.
™
1J191N Female Seal-Lok Swivel 90° Elbow Long Drop B Tubing
Part Thread Hose Cutoff Allow. J
A Number A B E Hex
B Size Size

inch mm inch mm inch mm inch
E 1J191N-4-4 9/16-18 -4 1.66 42 1-1/16 27 1.80 46 11/16
1J191N-4-5 9/16-18 -5 1.78 45 1-1/16 27 1.80 46 11/16 Coiled Air Hose
1J191N-6-5 11/16-16 -5 1.92 49 1-3/16 30 2.13 54 13/16 & Fittings
1J191N-6-6 11/16-16 -6 1.92 49 1-3/16 30 2.13 54 13/16
1J191N-8-6 13/16-16 -6 2.00 51 1-9/16 40 2.51 43 15/16 C
Construction: Steel nipple, tube, nut 1J191N-8-8 13/16-16 -8 2.15 58 1-7/16 37 2.51 64 15/16
and shell. Add “C” for Stainless Steel. 1J191N-10-10 1-14 -10 1.25 32 1-9/16 40 2.76 70 1-1/8
1J191N-12-12 1-3/16-12 -12 2.65 67 1-13/16 46 3.78 96 1-3/8
1J191N-16-16 1-7/16-12 -16 3.15 80 2-1/4 57 4.50 114 1-1/2

™
1J791N Female Seal-Lok Swivel 45° Elbow Transportation
Part Thread Hose A Cutoff Allow. E J
Number Size Size B Hex D

inch mm inch mm inch mm inch
1J791N-4-4 9/16-18 -4 1.73 44 1-1/4 32 0.41 10 11/16
1J791N-4-6 9/16-18 -6 1.91 49 1-5/16 33 0.41 10 11/16
Construction: Steel nipple, tube, nut 1J791N-6-6 11/16-16 -6 2.02 51 1-3/8 35 0.43 11 13/16
and shell. Add “C” for Stainless Steel. Series 91N
1J791N-8-8 13/16-16 -8 2.18 55 1-1/2 38 0.59 15 15/16 Fittings
1J791N-8-10 13/16-16 -8 2.39 61 1-11/16 43 0.59 15 15/16
1J791N-10-10 1-14 -10 2.47 63 1-3/4 44 0.59 43 1-1/8 E
1J791N-12-12 1-3/16-12 -12 2.74 58 1-15/16 49 0.81 21 1-3/8
1J791N-16-16 1-7/16-12 -16 3.50 89 2-1/2 64 0.94 24 1-5/8

™
1J991N Female Seal-Lok Swivel 90° Elbow Short Drop
Part Thread Hose Cutoff Allow. E J Tooling, Equipment
Number Size Size A B Hex & Accessories

F
inch mm inch mm inch mm inch
1J991N-4-4 9/16-18 -4 1.73 44 1-1/4 32 0.82 21 11/16
1J991N-6-6 11/16-16 -6 1.91 49 1-5/16 33 0.91 23 13/16
1J991N-8-8 13/16-16 -6 2.02 51 1-3/8 35 1.15 29 15/16
Construction: Steel nipple, tube, nut 1J991N-10-10 1-14 -10 2.18 55 1-1/2 38 1.27 32 1-1/8
and shell. Add “C” for Stainless Steel.
1J991N-12-12 1-3/16-12 -12 2.39 61 1-11/16 43 1.85 43 1-3/8
General Technical
1J991N-16-16 1-7/16-12 -16 2.47 63 1-3/4 44 2.21 56 1-5/8

For detailed ordering information, please consult price list or contact Parflex Division. G
