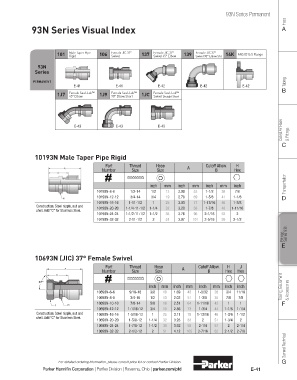

Page 299 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

93N Series Permanent
Hose
93N Series Visual Index A

Male Taper Pipe Female JIC 37° Female JIC 37° Female JIC 37°
101 Rigid 106 Swivel 137 Swivel 45° Elbow 139 Swivel 90° Elbow Sht. 14K ANSI B16.5 Flange

93N
Series

PERMANENT Tubing
E-41 E-41 E-42 E-42 E-42
1J7 Female Seal-Lok™ 1J9 Female Seal-Lok™ 1JC Female Seal-Lok™ B
45° Elbow
90° Elbow Short
Swivel Straight Short

Coiled Air Hose & Fittings

E-43 E-43 E-43

C

10193N Male Taper Pipe Rigid

Part Thread Hose A Cutoff Allow. H
Number Size Size B Hex
Transportation
inch mm inch mm inch mm inch
10193N-8-8 1/2-14 1/2 13 2.09 53 1-1/2 38 7/8
10193N-12-12 3/4-14 3/4 19 2.70 69 1-5/8 41 1-1/8 D
10193N-16-16 1-11-1/2 1 25 3.03 77 1-13/16 46 1-3/8
Construction: Steel nipple, nut and 10193N-20-20 1-1/4-11-1/2 1-1/4 32 3.20 58 1-7/8 48 1-11/16
shell. Add “C” for Stainless Steel.
10193N-24-24 1-1/2-11-1/2 1-1/2 38 3.76 96 2-1/16 52 2
10193N-32-32 2-11-1/2 2 51 3.97 101 2-5/16 59 2-1/2

Fittings Series 93N

E

10693N (JIC) 37° Female Swivel

Part Thread Hose A Cutoff Allow. H J
Number Size Size B Hex Hex

inch mm inch mm inch mm inch inch Tooling, Equipment
10693N-6-6 9/16-18 3/8 10 1.69 43 1-3/32 28 3/4 11/16 & Accessories
10693N-8-8 3/4-16 1/2 13 2.02 51 1-3/8 35 7/8 7/8
10693N-10-10 7/8-14 5/8 16 2.51 64 1-11/16 43 1 1 F
10693N-12-12 1-1/16-12 3/4 19 2.86 73 1-3/4 44 1-1/8 1-1/4
Construction: Steel nipple, nut and 10693N-16-16 1-5/16-12 1 25 3.11 79 1-13/16 46 1-3/8 1-1/2
shell. Add “C” for Stainless Steel.
10693N-20-20 1-5/8-12 1-1/4 32 3.28 83 2 51 1-3/4 2
10693N-24-24 1-7/8-12 1-1/2 38 3.92 58 2-1/4 57 2 2-1/4
10693N-32-32 2-1/2-12 2 51 4.12 105 2-7/16 62 2-1/2 2-7/8
General Technical

For detailed ordering information, please consult price list or contact Parflex Division. G
Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd E-41
