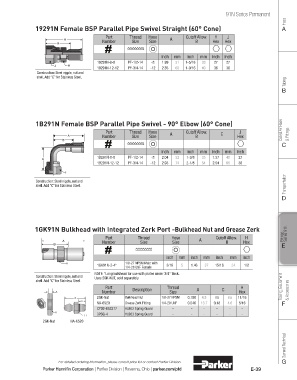

Page 297 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

91N Series Permanent
Hose
19291N Female BSP Parallel Pipe Swivel Straight (60° Cone) A

Part Thread Hose A Cutoff Allow. H J
Number Size Size B Hex Hex

inch mm inch mm inch inch
19291N-8-8 PF-1/2-14 -8 1.99 51 1-5/16 33 27 27
19291N-12-12 PF-3/4-14 -12 2.35 60 1-9/16 40 36 36
Construction: Steel nipple, nut and
shell. Add “C” for Stainless Steel.
Tubing
B

1B291N Female BSP Parallel Pipe Swivel - 90° Elbow (60° Cone)
Part Thread Hose Cutoff Allow. J Coiled Air Hose
Number Size Size A B E Hex & Fittings
B
C
inch mm inch mm inch mm inch
1B291N-8-8 PF-1/2-14 -8 2.04 52 1-3/8 35 1.57 40 27
1B291N-12-12 PF-3/4-14 -12 2.93 74 2-1/8 54 2.54 65 36

Transportation
Construction: Steel nipple, nut and
shell. Add “C” for Stainless Steel.

D

1GK91N Bulkhead with Integrated Zerk Port -Bulkhead Nut and Grease Zerk
Part Thread Hose Cutoff Allow. H Fittings Series 91N
Number Size Size A B Hex
E

inch mm inch mm inch mm inch
H 1/8-27 NPSM Male with
1GK91N-2-4* 3/16 5 1.46 37 15/16 24 1/2
1/4-28 UNF Female
NOTE: *Long bulkhead for use with plates under 3/4" thick.
Construction: Steel nipple, nut and Uses 2GK-NUT, sold separately.
shell. Add “C” for Stainless Steel.
Part Thread H Tooling, Equipment
A Number Description Size A C Hex & Accessories
A 2GK-Nut Bulkhead Nut 1/8-27 NPSM 0.188 4.8 na na 11/16
C
NA-6520 Grease Zerk Fitting 1/4-28 UNF 0.540 13.7 0.18 4.6 5/16 F
CY02-652317 HLB02 Spring Guard - - - - - -
H
H 3PSG-4 HLB03 Spring Guard - - - - - -
2GK-Nut NA-6520

General Technical

For detailed ordering information, please consult price list or contact Parflex Division. G
Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd E-39
