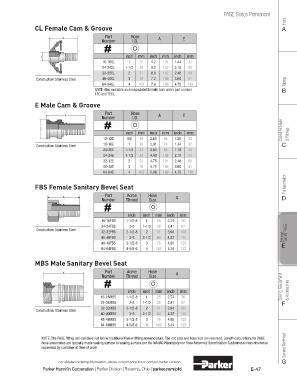

Page 305 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

PAGE Series Permanent
Hose
CL Female Cam & Groove A

Part Hose A E
Number I.D.

inch mm inch mm inch mm
16-16CL 1 25 4.2 107 1.44 37
24-24CL 1-1/2 38 5.2 132 2.10 53
32-32CL 2 51 6.0 152 2.48 63
Construction: Stainless Steel. 48-48CL 3 76 7.2 183 3.60 91
64-64CL 4 102 7.8 198 4.70 119 Tubing
NOTE: Also available as encapsulated female cam under part number B
TEC and TECL.
E Male Cam & Groove
Part Hose
A A E
Number I.D.

E Coiled Air Hose
inch mm inch mm inch mm & Fittings
12-12E 3/4 19 2.60 66 1.26 32
Construction: Stainless Steel. 16-16E 1 25 2.91 74 1.44 37 C
20-20E 1-1/4 32 3.64 93 1.78 45
24-24E 1-1/2 38 4.03 102 2.10 53
32-32E 2 51 4.75 121 2.48 63
48-48E 3 76 5.75 146 3.60 91
64-64E 4 102 5.88 149 4.70 119
Transportation
FBS Female Sanitary Bevel Seat

Part Acme Hose
A A D
Number Thread Size

inch inch mm inch mm
16-16FBS 1-1/2-8 1 25 2.74 70
24-24FBS 2-8 1-1/2 38 3.41 87
Construction: Stainless Steel.
32-32FBS 2-1/2-8 2 51 3.94 100 Series PAGE
40-40FBS 3-8 2-1/2 64 4.37 110 Fittings
48-48FBS 3-1/2-8 3 76 4.85 123 E
64-64FBS 4-5/8-6 4 102 5.24 133

MBS Male Sanitary Bevel Seat
Part Acme Hose A
Number Thread Size

inch inch mm inch mm Tooling, Equipment & Accessories
16-16MBS 1-1/2-8 1 25 2.74 70
24-24MBS 2-8 1-1/2 38 3.41 87 F
32-32MBS 2-1/2-8 2 51 3.94 100
Construction: Stainless Steel.
40-40MBS 3-8 2-1/2 64 4.37 110
48-48MBS 3-1/2-8 3 76 4.85 123
64-64MBS 4-5/8-6 4 102 5.24 133

General Technical
NOTE: The PAGE fitting call-out does not follow traditional Parker fitting nomenclature. The end size and hose size are reversed. Length calculations for PAGE
hose assemblies are typically made sealing surface to sealing surface per the NAHAD Fluoropolymer Hose Assembly Specification Guidelines unless otherwise
requested by customer at time of order.

For detailed ordering information, please consult price list or contact Parflex Division. G
Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd E-47
