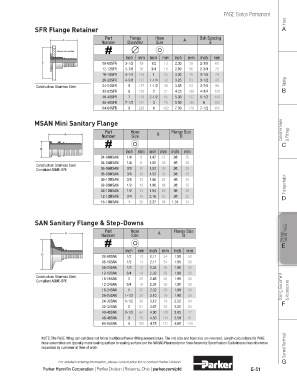

Page 309 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

PAGE Series Permanent
Hose
SFR Flange Retainer A

Part Flange Hose Bolt Spacing
A A
Number Diameter Size E
Flange not included
inch mm inch mm inch mm inch mm
E 08-08SFR 3-1/2 89 1/2 13 2.30 58 2-3/8 60
12-12SFR 3-7/8 98 3/4 19 2.60 66 2-3/4 70
16-16SFR 4-1/4 108 1 25 3.00 76 3-1/8 79
20-20SFR 4-5/8 117 1-1/4 32 3.25 83 3-1/2 89 Tubing
Construction: Stainless Steel. 24-24SFR 5 127 1-1/2 38 3.65 93 3-7/8 98
32-32SFR 6 152 2 51 4.25 108 4-3/4 120 B
40-40SFR 7 178 2-1/2 64 5.00 127 5-1/2 140
48-48SFR 7-1/2 191 3 76 5.50 140 6 152
64-64SFR 9 229 4 102 7.00 178 7-1/2 191

MSAN Mini Sanitary Flange

Part Hose Flange Size Coiled Air Hose
Number Size A D & Fittings
C
D
inch mm inch mm inch mm
04-04MSAN 1/4 6 1.47 37 .98 25
04-08MSAN 1/4 6 1.50 38 .98 25
Construction: Stainless Steel.
Compliant ASME-BPE 06-06MSAN 3/8 10 1.53 39 .98 25
06-08MSAN 3/8 10 1.53 39 .98 25
06-12MSAN 3/8 10 1.66 42 .98 25
08-08MSAN 1/2 13 1.90 48 .98 25 Transportation
08-12MSAN 1/2 13 1.94 49 .98 25
12-12MSAN 3/4 19 2.16 55 .98 25 D
16-16MSAN 1 25 2.27 58 1.34 34

SAN Sanitary Flange & Step-Downs

Part Hose Flange Size
A A Series PAGE
Number Size D Fittings
E
inch mm inch mm inch mm
D
08-08SAN 1/2 13 2.11 54 1.98 50
08-16SAN 1/2 13 2.11 54 1.98 50
08-24SAN 1/2 13 2.34 59 1.98 50
12-12SAN 3/4 19 2.32 59 1.98 50
Construction: Stainless Steel. 16-16SAN 1 25 2.45 62 1.98 50
Compliant ASME-BPE
12-24SAN 3/4 19 2.34 59 1.98 50 Tooling, Equipment
16-24SAN 1 25 2.32 59 1.98 50 & Accessories
24-24SAN 1-1/2 38 3.10 79 1.98 50
24-32SAN 1-1/2 38 3.12 79 2.52 64 F
32-32SAN 2 51 3.67 93 2.52 64
40-40SAN 2-1/2 64 4.00 102 3.05 77
48-48SAN 3 76 4.50 114 3.58 91
64-64SAN 4 102 4.75 121 4.68 119

General Technical
NOTE: The PAGE fitting call-out does not follow traditional Parker fitting nomenclature. The end size and hose size are reversed. Length calculations for PAGE
hose assemblies are typically made sealing surface to sealing surface per the NAHAD Fluoropolymer Hose Assembly Specification Guidelines unless otherwise
requested by customer at time of order.

For detailed ordering information, please consult price list or contact Parflex Division. G
Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd E-51
