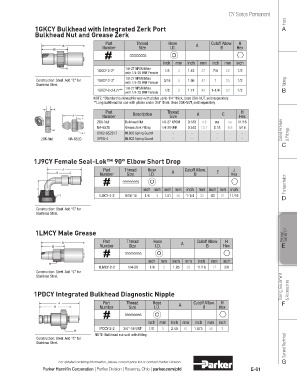

Page 319 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

CY Series Permanent
Hose
1GKCY Bulkhead with Integrated Zerk Port A
Bulkhead Nut and Grease Zerk
Part Thread Hose A Cutoff Allow. H
Number Size I.D. B Hex

inch mm inch mm inch mm inch
H 1/8-27 NPSM Male
1GKCY-2-2* 1/8 3 1.45 37 7/8 22 1/2
with 1/4-28 UNF Female
1/8-27 NPSM Male
Construction: Steel. Add “C” for 1GKCY-2-3* 3/16 5 1.86 47 1 25 1/2 Tubing
Stainless Steel. with 1/4-28 UNF Female
1GKCY-2-2-L77** 1/8-27 NPSM Male 1/8 3 1.71 43 1-1/4 32 1/2 B
with 1/4-28 UNF Female
NOTE: *Standard bulkhead for use with plates up to 1/4" thick. Uses 2GK-NUT, sold separately.
**Long bulkhead for use with plates under 3/4" thick. Uses 2GK-NUT, sold separately.
A
Part Thread H
A Number Description Size A C Hex
C
2GK-Nut Bulkhead Nut 1/8-27 NPSM 0.188 4.8 na na 11/16
NA-6520 Grease Zerk Fitting 1/4-28 UNF 0.540 13.7 0.18 4.6 5/16
H Coiled Air Hose
H CY02-652317 HLB02 Spring Guard - - - - - - & Fittings
2GK-Nut NA-6520 3PSG-4 HLB03 Spring Guard - - - - - -
C

1J9CY Female Seal-Lok™ 90° Elbow Short Drop

A Part Thread Hose Cutoff Allow. J
B Number Size I.D. A B E Hex
Transportation

inch mm inch mm inch mm inch mm inch
J 1J9CY-4-2 9/16-18 1/8 3 1.81 46 1-1/4 32 .83 21 11/16
D
Construction: Steel. Add “C” for
Stainless Steel.

1LMCY Male Grease Fittings Series CY

Part Thread Hose A Cutoff Allow. H
Number Size I.D. B Hex E

inch mm inch mm inch mm inch
1LMCY-2-2 1/4-28 1/8 3 1.26 32 11/16 17 3/8
Construction: Steel. Add “C” for
Tooling, Equipment
Stainless Steel.

1PDCY Integrated Bulkhead Diagnostic Nipple & Accessories

Part Thread Hose A Cutoff Allow. H F
Number Size I.D. B Hex

inch mm inch mm inch mm inch
1PDCY-2-2 3/4"-16 UNF 1/8 3 2.40 61 1.875 48 1
NOTE: Bulkhead nut sold with fitting.
General Technical
Construction: Steel. Add “C” for
Stainless Steel.

For detailed ordering information, please consult price list or contact Parflex Division. G
Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd E-61
