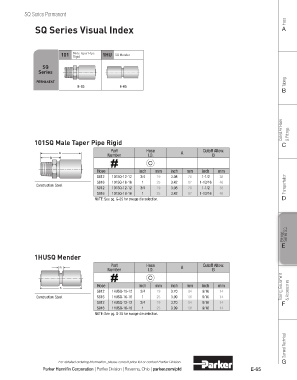

Page 323 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

SQ Series Permanent
Hose
SQ Series Visual Index A

Male Taper Pipe
101 Rigid 1HU SQ Mender

SQ
Series

PERMANENT Tubing
E-65 E-65
B

Coiled Air Hose & Fittings

101SQ Male Taper Pipe Rigid C
Part Hose A Cutoff Allow.
Number I.D. B

Hose inch mm inch mm inch mm
S612 101SQ-12-12 3/4 19 3.08 78 1-1/2 38
S616 101SQ-16-16 1 25 3.42 87 1-13/16 46
Construction: Steel. Transportation
S912 101SQ-12-12 3/4 19 3.08 78 1-1/2 38
S916 101SQ-16-16 1 25 3.42 87 1-13/16 46
NOTE: See pg. G-35 for swage die selection. D

Fittings Series SQ

E

1HUSQ Mender

Part Hose A Cutoff Allow.
Number I.D. B
Tooling, Equipment

Hose inch mm inch mm inch mm
S612 1HUSQ-12-12 3/4 19 3.70 94 9/16 14 & Accessories
Construction: Steel. S616 1HUSQ-16-16 1 25 3.99 101 9/16 14
S912 1HUSQ-12-12 3/4 19 3.70 94 9/16 14 F
S916 1HUSQ-16-16 1 25 3.99 101 9/16 14
NOTE: See pg. G-35 for swage die selection.

General Technical

For detailed ordering information, please consult price list or contact Parflex Division. G
Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd E-65
