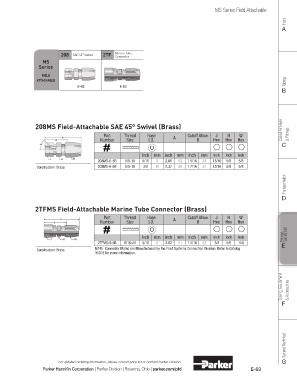

Page 321 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

MS Series Field Attachable

Hose
A

Marine Tube
208 SAE 45° Swivel 2TF Connector
MS
Series

FIELD
ATTACHABLE
Tubing
E-63 E-63
B

208MS Field-Attachable SAE 45° Swivel (Brass) Coiled Air Hose

Part Thread Hose A Cutoff Allow. J H W & Fittings
Number Size I.D. B Hex Hex Hex
C

inch mm inch mm inch mm inch inch inch
W
208MS-6-5B 5/8-18 5/16 8 2.06 52 1 5/16 33 13/16 5/8 5/8
Construction: Brass 208MS-6-6B 5/8-18 3/8 10 2.37 60 1 7/16 37 13/16 5/8 5/8

Transportation

D

2TFMS Field-Attachable Marine Tube Connector (Brass)
Part Thread Hose Cutoff Allow. J H W
A A
B Number Size I.D. B Hex Hex Hex

inch mm inch mm inch mm inch inch inch Fittings Series MS
J H W
2TFMS-6-5B 9/16-24 5/16 8 2.02 51 1 5/16 33 3/4 5/8 5/8 E
Construction: Brass NOTE: Connector Mates are Manufactured by the Fluid Systems Connection Division. Refer to Catalog
3501E for more information.

Tooling, Equipment & Accessories

F

General Technical

For detailed ordering information, please consult price list or contact Parflex Division. G
Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd E-63
