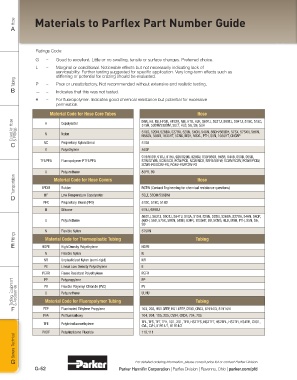

Hose Materials to Parflex Part Number Guide
A

Ratings Code:

G – Good to excellent. Little or no swelling, tensile or surface changes. Preferred choice.
L – Marginal or conditional. Noticeable effects but not necessarily indicating lack of
serviceability. Further testing suggested for specific application. Very long-term effects such as
stiffening or potential for crazing should be evaluated.
Tubing P – Poor or unsatisfactory. Not recommended without extensive and realistic testing.
B — – Indicates that this was not tested.

# – For fluoropolymer. Indicates good chemical resistance but potential for excessive
permeation.
Material Code for Hose Core Tubes D6R, H6, R6, HFSR, HFS2R, M8, HTB, HJK, 560TJ, 563TJ, 590TJ, 594TJ, 510C, 518C,
Hose
Coiled Air Hose & Fittings H N Copolyester 515H, 53DM/538DM, 55LT, HLB, S6, S9, SLH

518D, 520N, 526BA, 527BA, 528N, 540N, 548N, 56DH/568DH, 575X, 575XN, 580N,
Nylon
H580N, 588N, 1035HT, 5CNG, MSH, MSXL, PTH, S5N, 1035HT, CNGRP
C NC Proprietary Nylon Blend 510A
O Polyethylene 540P
919/919B, 919J, 919U, 929/929B, 929BJ, 939/939B, 943B, 944B, 950B, 955B,
TFE/PFA Fluoropolymer PTFE/PFA STW/STWB, SCW/SCB, PCW/PCB, NCW/NCB, SBFB/SBFW, SCWV/SCBV, PCWV/PCBV,
SCWV-FS/SCBV-FS, PCWV-FS/PCBV-FS
U Polyurethane 83FR, B9
Transportation EPDM Material Code for Hose Covers RCTW (Contact Engineering for chemical resistance questions)
Hose
Rubber
D HF Low Temperature Copolyester 55LT, 53DM/538DM
PFX Proprietary Blend (PFX) 510C, 518C, 518D
M Silicone 919J, 929BJ
560TJ, 563TJ, 590TJ, 594TJ, 510A, 515H, 520N, 528N, 526BA, 527BA, 540N, 540P,
U Polyurethane 56DH, 569, 575X, 580N, 588N, 83FR, 1035HT, B9, 5CNG, HLB, MSH, PTH, S5N, S6,
S9
N Flexible Nylon 575XN
Fittings Material Code for Thermoplastic Tubing Tubing
E HDPE High Density Polyethylene HDPE

N Flexible Nylon N
NR Unplasticized Nylon (semi-rigid) NR
PE Linear Low Density Polyethylene E
PEFR Flame Resistant Polyethylene PEFR
Tooling, Equipment & Accessories PV Flexible Polyvinyl Chloride (PVC) PV
Polypropylene
PP
PP
U, HU
Polyurethane
U
Material Code for Fluoropolymer Tubing
Tubing
F FEP Fluorinated Ethylene Propylene 103, 203, HS1.3FEP, HS1.6FEP, CV03, CR03, 81914/3, 81914/4
PFA Perfluoroalkoxy 104, 204, 105, 205, CV04, CR04, 704, 705
TFL, TFS, TFT, TFH, 101, 201, TFB, HS2TFS, HS2TFT, HS2TFL, HS2TFI, HS4TFI, CV01,
TFE Polytetrafluoroethylene
CVL, CVH, 81914/1, 81914/2
PVDF Polyvinylidene Fluoride 110,111
General Technical

G For detailed ordering information, please consult price list or contact Parflex Division.
