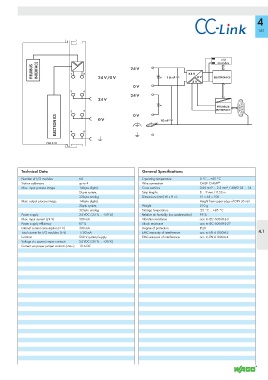

Page 183 - Wago_AutomationTechnology_Volume3_2015_US.pdf

4

181

I/O
modules
FIELDBUS INTERFACE 1 5 24 V 24 V

24 V /0 V
10 nF
5 V 5 V ELECTRONICS
0 V
2 6
24 V
24 V
FIELDBUS
INTERFACE
3 7 0 V
ELECTRONICS 4 8 0 V 10 nF

750-310

Technical Data General Specifications
Number of I/O modules 64 Operating temperature 0 °C ... +55 °C
Station addresses up to 4 Wire connection CAGE CLAMP ®
Max. input process image 14-byte digital, Cross sections 0.08 mm² ... 2.5 mm² / AWG 28 ... 14
2-byte system, Strip lengths 8 ... 9 mm / 0.33 in
32-byte analog Dimensions (mm) W x H x L 51 x 65 x 100
Max. output process image 14-byte digital, Height from upper-edge of DIN 35 rail
2-byte system, Weight 210 g
32-byte analog Storage temperature -25 °C ... +85 °C
Power supply 24 VDC (-25 % ... +30 %) Relative air humidity (no condensation) 95 %
Max. input current (24 V) 500 mA Vibration resistance acc. to IEC 60068-2-6
Power supply efficiency 87 % Shock resistance acc. to IEC 60068-2-27
Internal current consumption (5 V) 300 mA Degree of protection IP20
Total current for I/O modules (5 V) 1700 mA EMC immunity of interference acc. to EN 61000-6-2 4.1
Isolation 500 V system/supply EMC emission of interference acc. to EN 61000-6-4
Voltage via power jumper contacts 24 VDC (-25 % ... +30 %)
Current via power jumper contacts (max.) 10 A DC
