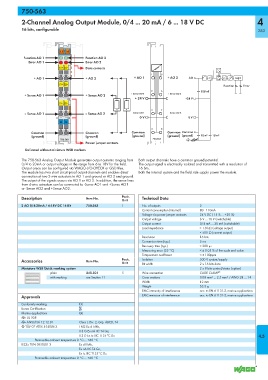

750-563

2-Channel Analog Output Module, 0/4 ... 20 mA / 6 ... 18 V DC 4

16 bits, configurable 283

13 14
A
Function AO 1 C Function AO 2
Error AO 1 B D Error AO 2
A1+ A2– Data contacts
I
U
1 5
+ AO 1 + AO 2 + AO 1 + AO 2 AO 0...20mA A D Logic
6...18V
S1+ S2+
Function Error
2 6 100 nF
+ Sense AO 1 + Sense AO 2
+ Sense AO 1 + Sense AO 2
+ 24 V +24 V
S1– S2–
3 7
– Sense AO 1 – Sense AO 2 - Sense AO 1 - Sense AO 2
0 V 0 V
M M
4 8
Common Common Common Common Common
(ground) (ground) (ground) (ground) (ground) 10 nF 10 nF
750-563 750-563
Power jumper contacts
Delivered without miniature WSB markers

The 750-563 Analog Output Module generates output currents ranging from Both output channels have a common ground potential.
0/4 to 20mA or output voltages in the range from 6 to 18V for the field. The output signal is electrically isolated and transmitted with a resolution of
Output areas can be configured via WAGO-I/O-CHECK or GSD files. 16 bits.
The module has two short circuit-proof output channels and enables direct Both the internal system and the field side supply power the module.
connection of two 2-wire actuators to AO 1 and ground or AO 2 and ground.
The output of the signals occurs via AO 1 or AO 2. In addition, the sense lines
from 4-wire actuators can be connected to -Sense AO1 and +Sense AO1
or -Sense AO2 and +Sense AO2.
Description Item No. Pack. Technical Data
Unit
2 AO 0/4-20mA / 6-18V DC 16 Bit 750-563 1 No. of outputs 2
Current consumption (internal) 80 - 110mA
Voltage via power jumper contacts 24 V DC (-15 % ... +20 %)
Output voltage 6 V ... 18 V (switchable)
Output current 0/4 mA ... 20 mA (switchable)
Load impedance > 1.8 kΩ (voltage output)
< 500 Ω (current output)
Resolution 16 bits
Conversion time (typ.) 5 ms
Recovery time (typ.) < 300 μs
Measuring error (25 °C) < ± 0.05 % of the scale end value
Temperature coefficient < ± 100ppm
Accessories Item No. Pack. Isolation 500 V system/supply
Unit Bit width 2 x 16 bits data
Miniature WSB Quick marking system 2 x 8 bits control/status (option)
plain 248-501 5 Wire connection CAGE CLAMP ®
with marking see Section 11 Cross sections 0.08 mm² ... 2.5 mm² / AWG 28 ... 14
Width 12 mm
Weight 53.5 g
EMC immunity of interference acc. to EN 61131-2, marine applications
Approvals EMC emission of interference acc. to EN 61131-2, marine applications
Conformity marking 1
Korea Certification
Marine applications GL
r UL 508
r ANSI/ISA 12.12.01 Class I, Div. 2, Grp. ABCD, T4
4 TÜV 07 ATEX 554086 X I M2 Ex d I Mb,
II 3 G Ex nA IIC T4 Gc,
II 3 D Ex tc IIIC T135°C Dc 4.5
Permissible ambient temperature 0 °C ... +60 °C
IECEx TUN 09.0001 X Ex d I Mb,
Ex nA IIC T4 Gc,
Ex tc IIIC T135°C Dc
Permissible ambient temperature 0 °C ... +60 °C
