512P Series

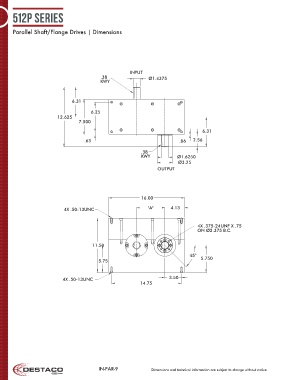

Parallel Shaft/Flange Drives | Dimensions
INPUT
.38 Ø1.4375
KWY
6.31
6.25
12.625
7.500
6.31
.63 .06 2.56
.38
KWY Ø1.6250
Ø3.25
OUTPUT
16.00
4X .50-13UNC "A" 4.13
4X .375-24UNF X .75
ON Ø2.375 B.C.
11.50
45°
5.75 5.750
4X .50-13UNC 3.50
14.75
512P
