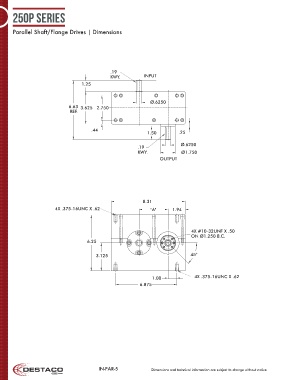

Page 5 - Destaco - Parallel Shaft/Flange Drives

250P Series

Parallel Shaft/Flange Drives | Dimensions

.19
KWY. INPUT
1.25

Ø.6250
6.63 3.625 2.750
REF.

.44
1.50 .25

Ø.6250
.19
KWY. Ø1.750
OUTPUT

8.31
4X .375-16UNC X .62 "A" 1.94

4X #10-32UNF X .50
ON Ø1.250 B.C.
6.25

3.125 45°

1.00 4X .375-16UNC X .62
6.875

250P

IN-PAR-5 Dimensions and technical information are subject to change without notice
