Page 7 - Destaco - Parallel Shaft/Flange Drives

387P Series

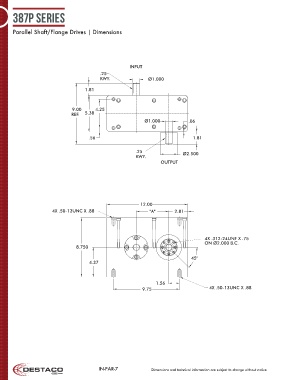

Parallel Shaft/Flange Drives | Dimensions

INPUT
.25
KWY. Ø1.000

1.81

9.00 4.25
REF. 5.38
Ø1.000 .06

.56 1.81

.25 Ø2.500
KWY.
OUTPUT

12.00
4X .50-13UNC X .88 "A" 2.81

4X .312-24UNF X .75
ON Ø2.000 B.C.
8.750
45°
4.37

1.56
9.75 4X .50-13UNC X .88

387P
