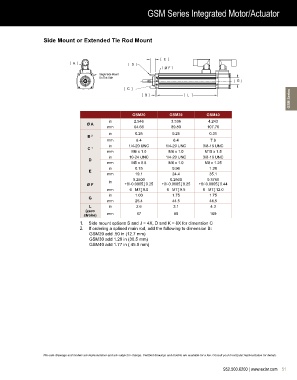

GSM Series Integrated Motor/Actuator

Side Mount or Extended Tie Rod Mount

E
A D
Ø F
Single Side Mount
On This Side
G
C
GSM Series
B L

GSM20 GSM30 GSM40
in 2.546 3.536 4.243
Ø A
mm 64.66 89.80 107.76
in 0.25 0.25 0.31
B 2
mm 6.4 6.4 7.9
in 1/4-20 UNC 1/4-20 UNC 3/8-16 UNC
C 1
mm M6 x 1.0 M6 x 1.0 M10 x 1.5
in 10-24 UNC 1/4-20 UNC 3/8-16 UNC
D
mm M5 x 0.8 M6 x 1.0 M8 x 1.25
in 0.75 0.96 1.38
E
mm 19.1 24.4 35.1
in 0.2500 0.2500 0.3750
Ø F +0/-0.0005↓‾ 0.25 +0/-0.0005↓‾ 0.25 +0/-0.0005↓‾ 0.44
mm 6 M7↓‾ 9.0 6 M7↓‾ 9.5 8 M7↓‾ 12.0
in 1.00 1.75 1.75
G
mm 25.4 44.5 44.5
L in 2.6 3.1 4.3
(zero
stroke) mm 67 80 109
1. Side mount options S and J = 4X, D and K = 8X for dimension C
2. If ordering a splined main rod, add the following to dimension B:
GSM20 add .50 in (12.7 mm)
GSM30 add 1.20 in (30.5 mm)
GSM40 add 1.77 in ( 45.0 mm)

Pre-sale drawings and models are representative and are subject to change. Certified drawings and models are available for a fee. Consult your local Exlar representative for details.
