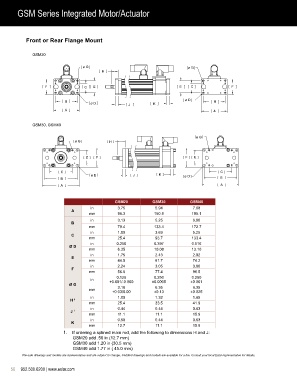

GSM Series Integrated Motor/Actuator

Front or Rear Flange Mount

GSM20

ø G ø G
H

F C E E C F

ø D
B ø D J K B
A A

GSM30, GSM40

ø G
ø G H

E F F E

C C
ø D J K ø D
B B
A A

GSM20 GSM30 GSM40
in 3.75 5.94 7.68
A
mm 95.3 150.9 195.1
in 3.13 5.25 6.80
B
mm 79.4 133.4 172.7
in 1.00 3.69 5.25
C
mm 25.4 93.7 133.4
in 0.250 0.397 0.516
Ø D
mm 6.35 10.08 13.10
in 1.75 2.43 2.92
E
mm 44.5 61.7 74.2
in 2.24 3.05 3.80
F
mm 56.8 77.4 96.5
0.125 0.250 0.250
in +0.001/-0.000 ±0.0005 ±0.001
Ø G
mm 3.18 6.35 6.35
+0.03/0.00 ±0.13 ±0.025
in 1.00 1.32 1.65
H 1
mm 25.4 33.5 41.9
in 0.44 0.44 0.63
J 1
mm 11.1 11.1 15.9
in 0.50 0.44 0.63
K
mm 12.7 11.1 15.9
1. If ordering a splined main rod, add the following to dimensions H and J:
GSM20 add .50 in (12.7 mm)
GSM30 add 1.20 in (30.5 mm)
GSM40 add 1.77 in ( 45.0 mm)
Pre-sale drawings and models are representative and are subject to change. Certified drawings and models are available for a fee. Consult your local Exlar representative for details.
