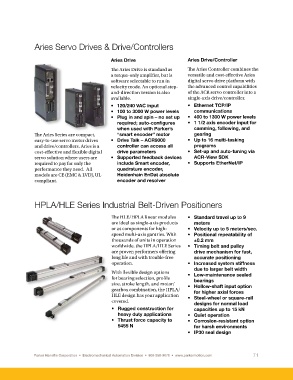

Aries Servo Drives & Drive/Controllers

Aries Drive Aries Drive/Controller
The Aries Drive is standard as The Aries Controller combines the
a torque-only amplifier, but is versatile and cost-effective Aries
software selectable to run in digital servo drive platform with
velocity mode. An optional step- the advanced control capabilities
and-direction version is also of the ACR servo controller into a
available. single-axis drive/controller.
• 120/240 VAC input • Ethernet TCP/IP
• 100 to 3000 W power levels communications
• Plug in and spin – no set up • 400 to 1300 W power levels
required; auto-configures • 1 1/2 axis encoder input for
when used with Parker’s camming, following, and
The Aries Series are compact, “smart encoder” motor gearing
easy-to-use servo motor drives • Drive Talk – ACR9000 • Up to 16 multi-tasking
and drive/controllers. Aries is a controller can access all programs
cost-effective and flexible digital drive parameters • Set-up and auto-tuning via
servo solution where users are • Supported feedback devices ACR-View SDK
required to pay for only the include Smart encoder, • Supports EtherNet/IP
performance they need. All quadrature encoder,
models are CE (EMC & LVD), UL Heidenhain EnDat absolute
compliant. encoder and resolver

HPLA/HLE Series Industrial Belt-Driven Positioners

The HLE/HPLA linear modules • Standard travel up to 9
are ideal as single-axis products meters
or as components for high- • Velocity up to 5 meters/sec.
speed multi-axis gantries. With • Positional repeatability of
thousands of units in operation ±0.2 mm
worldwide, the HPLA/HLE Series • Timing belt and pulley
are proven performers offering drive mechanism for fast,
long life and with trouble-free accurate positioning
operation. • Increased system stiffness
due to larger belt width
With flexible design options • Low-maintenance sealed
for bearing selection, profile bearings
size, stroke length, and motor/ • Hollow-shaft input option
gearbox combination, the HPLA/ for higher axial forces
HLE design has your application • Steel-wheel or square-rail
covered. designs for normal load
• Rugged construction for capacities up to 15 kN
heavy duty applications • Quiet operation
• Thrust force capacity to • Corrosion-resistant option
5455 N for harsh environments
• IP30 seal design
