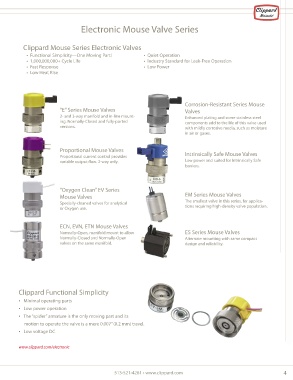

Electronic Mouse Valve Series

Clippard Mouse Series Electronic Valves
• Functional Simplicity—One Moving Part! • Quiet Operation
• 1,000,000,000+ Cycle Life • Industry Standard for Leak-Free Operation
• Fast Response • Low Power
• Low Heat Rise

Corrosion-Resistant Series Mouse
“E” Series Mouse Valves Valves
2- and 3-way manifold and in-line mount- Enhanced plating and some stainless steel
ing. Normally-Closed and fully-ported components add to the life of this valve used
versions. with mildly corrosive media, such as moisture
in air or gases.

Proportional Mouse Valves
Intrinsically Safe Mouse Valves
Proportional current control provides
variable output flow. 2-way only. Low power and suited for Intrinsically Safe
barriers.

“Oxygen Clean” EV Series
EM Series Mouse Valves
Mouse Valves
The smallest valve in this series, for applica-
Specially-cleaned valves for analytical
tions requiring high-density valve population.
or Oxygen use.

ECN, EVN, ETN Mouse Valves
Normally-Open, manifold mount to allow ES Series Mouse Valves
Normally-Closed and Normally-Open Alternate mounting with same compact
valves on the same manifold. design and reliability.

Clippard Functional Simplicity
• Minimal operating parts
• Low power operation
• The “spider” armature is the only moving part and its
motion to operate the valve is a mere 0.007” (0.2 mm) travel.
• Low voltage DC

www.clippard.com/electronic
