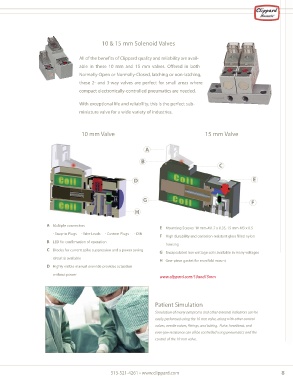

10 & 15 mm Solenoid Valves

All of the benefits of Clippard quality and reliability are avail-
able in these 10 mm and 15 mm valves. Offered in both
Normally-Open or Normally-Closed, latching or non-latching,
these 2- and 3-way valves are perfect for small areas where
compact electronically-controlled pneumatics are needed.

With exceptional life and reliability, this is the perfect sub-
miniature valve for a wide variety of industries.

10 mm Valve 15 mm Valve

A

B
C

D E

G F

H

A Multiple connectors
E Mounting Screws: 10 mm-M1.7 x 0.35, 15 mm-M3 x 0.5
- Snap-in Plugs - Wire Leads - Custom Plugs - DIN
F High durability and corrosion-resistant glass filled nylon
B LED for confirmation of operation
housing
C Diodes for current spike suppression and a power saving
G Encapsulated low wattage coils available in many voltages
circuit is available
H One-piece gasket for manifold mount
D Highly visible manual override provides actuation
without power
www.clippard.com/10and15mm

Patient Simulation
Simulation of many symptoms and other external indicators can be
easily performed using the 10 mm valve, along with other control
valves, needle valves, fittings, and tubing. Pulse, heartbeat, and
even jaw resistance can all be controlled using pneumatics and the
control of the 10 mm valve.
