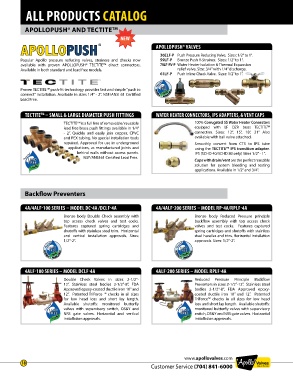

Page 18 - Apollo - All Products Catalog 2015

ALL PRODUCTS CATALOG

APOLLOPUSH® AND TECTITE TM

APOLLOPUSH® VALVES

36ELF-P Push Pressure Reducing Valve. Sizes: 1/2” to 1”.
Popular Apollo pressure reducing valves, strainers and checks now 59LF-P Bronze Push Y-Strainer. Sizes: 1/2” to 1”.
available with proven APOLLOPUSH® TECTITE direct connectors. 78LF-RV-P Water Heater Isolation & Thermal Expansion
TM
Available in both standard and lead free models. relief valve. Size: 3/4” with 1/4” discharge.
61LF-P Push Inline Check Valve. Sizes: 1/2” to 1”.

Proven TECTITE push-fit technology provides fast and simple “push to
TM
connect” installation. Available in sizes 1/4” - 2”. NSF/ANSI 61 Certified
Lead Free.

TECTITE – SMALL & LARGE DIAMETER PUSH FITTINGS WATER HEATER CONNECTORS, IPS ADAPTERS, & VENT CAPS
TM
TM
TECTITE is a full line of removable/ reusable 100% Corrugated SS Water Heater Connectors
TM
lead free brass push fittings available in 1/4” equipped with LF DZR brass TECTITE
- 2”. Quickly and easily join copper, CPVC connection. Sizes: 12”, 15”, 18”, 21” Also
and PEX tubing. No special installation tools available with ball valve attached.
required. Approved for use in underground Smoothly convert from CTS to IPS tube
applications, as manufactured joints and using the TECTITE IPS transition adapter.
TM
behind walls without access panels. IPS (SCHD 40/SCHD 80 only) Sizes 1/2” - 1”.
NSF/ANSI 61 Certified Lead Free.
Caps with drain/vent are the perfect reusable
solution for system bleeding and testing
applications. Available in 1/2” and 3/4”.

Backflow Preventers

4A/4ALF-100 SERIES – MODEL DC-4A /DCLF-4A 4A/4ALF-200 SERIES – MODEL RP-4A/RPLF-4A

Bronze body Double Check assembly with Bronze body Reduced Pressure principle
top access check valves and test cocks. backflow assembly with top access check
Features captured spring cartridges and valves and test cocks. Features captured
shutoffs with stainless steel trim. Horizontal spring cartridges and shutoffs with stainless
and vertical installation approvals. Sizes: steel handles and trim. Horizontal installation
1/2”-2”. approvals. Sizes: 1/2”-2”.

4ALF-100 SERIES – MODEL DCLF-4A 4ALF-200 SERIES – MODEL RPLF-4A
Double Check Valves in sizes 2-1/2”- Reduced Pressure Principle Backflow
12”. Stainless steel bodies 2-1/2”-8”, FDA Preventers in sizes 2-1/2”-12”. Stainless steel
Approved epoxy-coated ductile iron 10” and bodies 2-1/2”-8”, FDA Approved epoxy-
12”. Patented TriForce ™ checks in all sizes coated ductile iron 10” and 12”. Patented
for low head loss and short lay length. TriForce™ checks in all sizes for low head
Available shutoffs: monitored butterfly loss and short lay length. Available shutoffs:
valves with supervisory switch, OS&Y and monitored butterfly valves with supervisory
NRS gate valves. Horizontal and vertical switch, OS&Y and NRS gate valves. Horizontal
installation approvals. installation approvals.

www.apollovalves.com
18
Customer Service (704) 841-6000
