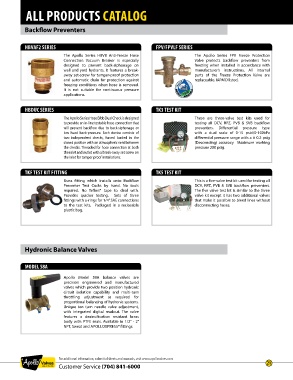

Page 21 - Apollo - All Products Catalog 2015

ALL PRODUCTS CATALOG

Backflow Preventers

HBVAF2 SERIES FPV/FPVLF SERIES

The Apollo Series HBVB Anti-Freeze Hose The Apollo Series FPV Freeze Protection
Connection Vacuum Breaker is especially Valve protects backflow preventers from
designed to prevent back-siphonage on freezing when installed in accordance with
wall and yard hydrants. It features a break- manufacturer’s instructions. All internal
away set-screw for tamper-proof protection parts of the Freeze Protection Valve are
and automatic drain for protection against replaceable. IAPMO listed.
freezing conditions when hose is removed.
It is not suitable for continuous pressure
applications.

HBDUC SERIES TK3 TEST KIT
The Apollo Series Hose Bibb Dual Check is designed These are three-valve test kits used for
to provide an in-line testable hose connection that testing all DCV, RPZ, PVB & SVB backflow
will prevent backflow due to back-siphonage or preventers. Differential pressure type
low head back-pressure. Each device consists of with a dual scale of 0-15 psid/0-100kPa
two independent checks, forced loaded in the differential pressure range with a ± 0.2 psig
closed position with an atmospheric vent between (Descending) accuracy. Maximum working
the checks. Threaded for hose connection at both pressure 200 psig.
the inlet and outlet with a break-away set screw on
the inlet for tamper proof installations.

TKF TEST KIT FITTING TK5 TEST KIT
Brass fitting which installs onto Backflow This is a five-valve test kit used for testing all
Preventer Test Cocks by hand. No tools DCV, RPZ, PVB & SVB backflow preventers.
required. No Teflon® tape to deal with. The five valve test kit is similar to the three
Provides quicker testing. Sets of three valve kit except it has two additional valves
fittings with o-rings for 1/4” SAE connections that make it possible to bleed lines without
to the test kits. Packaged in a reclosable disconnecting hoses.
plastic bag.

Hydronic Balance Valves

MODEL 58A

Apollo Model 58A balance valves are
precision engineered and manufactured
valves which provide two position hydronic
circuit isolation capability and multi-turn
throttling adjustment as required for
proportional balancing of hydronic systems.
Unique ten turn needle valve adjustment,
with integrated digital readout. The valve
features a dezincification resistant brass
body with PTFE seals. Available in 1/2” - 2”
NPT, Sweat and APOLLOXPRESS® fittings.

For additional information, submittal sheets and manuals, visit www.apollovalves.com
Customer Service (704) 841-6000 21
