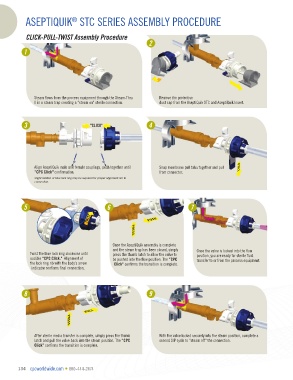

ASEPTIQUIK STC SERIES ASSEMBLY PROCEDURE
®

CLICK-PULL-TWIST Assembly Procedure
2
1

Steam flows from the process equipment through the Steam-Thru Remove the protective
II in a steam trap creating a “steam on" sterile connection. dust cap from the AseptiQuik STC and AseptiQuik Insert.

3 "CLICK" 4

Align AseptiQuik male and female couplings, push together until Snap membrane pull tabs together and pull PULL
“CPC Click" confirmation. from connector.
Slight rotation of blue lock ring may be required for proper alignment rior to
connection.

5 6 7

PUSH

PRESS
Once the AseptiQuik assembly is complete
and the steam trap has been closed, simply Once the valve is locked into the flow
Twist the blue lock ring clockwise until press the thumb latch to allow the valve to position, you are ready for sterile fluid
audible “CPC Click." Alignment of be pushed into the flow position. The “CPC transfer to or from the process equipment.
the lock ring rib with the body’s arrow Click" confirms the transition is complete.
indicator confirms final connection.

8 9

PULL

PRESS

After sterile media transfer is complete, simply press the thumb With the valve locked securely into the steam position, complete a
latch and pull the valve back into the steam position. The “CPC second SIP cycle to “steam off" the connection.
Click" confirms the transition is complete.
