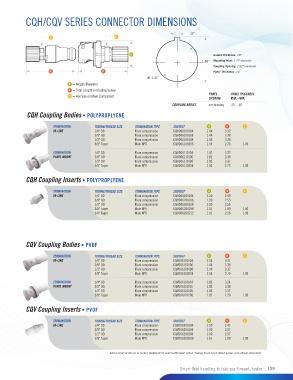

Page 140 - Colder Products Company - Catalog

CQH/CQV SERIES CONNECTOR DIMENSIONS

.17"
C C

A Gasket Thickness: .06"
1.30" Mounting Hole: 1.21" diameter
Coupling Spacing: 1.92" minimum
B B Panel Thickness: .25"
Ø .1.21"
A = Height/Diameter
B = Total Length (including valve)
PANEL PANEL THICKNESS
C = Hex Size on Main Component
OPENING MAX.–MIN.
COUPLING BODIES see drawing .25 – .03
CQH Coupling Bodies • POLYPROPLYENE

TERMINATION TUBING/THREAD SIZE TERMINATION TYPE SHUTOFF A B C
IN-LINE 1/4" OD Flare compression CQHD06100104 1.44 3.32
3/8" OD Flare compression CQHD06100106 1.44 3.38
1/2" OD Flare compression CQHD06100108 1.44 3.38
3/8" Taper Male NPT CQHD06100206 1.44 2.73 1.00
TERMINATION 1/4" OD Flare compression CQHD06110104 1.82 3.32
PANEL MOUNT 3/8" OD Flare compression CQHD06110106 1.82 3.38
1/2" OD Flare compression CQHD06110108 1.82 3.37
3/8" Taper Male NPT CQHD06110206 1.82 2.73 1.00

CQH Coupling Inserts • POLYPROPLYENE

TERMINATION TUBING/THREAD SIZE TERMINATION TYPE SHUTOFF A B C
IN-LINE 1/4" OD Flare compression CQHD06200104 1.00 2.49
3/8" OD Flare compression CQHD06200106 1.00 2.55
1/2" OD Flare compression CQHD06200108 1.00 2.56
3/8" Taper Male NPT CQHD06200206 1.16 1.90 1.00
3/4" Taper Male NPT CQHD06200212 1.16 2.26 1.00

CQV Coupling Bodies • PVDF

TERMINATION TUBING/THREAD SIZE TERMINATION TYPE SHUTOFF A B C
IN-LINE 1/4" OD Flare compression CQVD06100104 1.44 3.31
3/8" OD Flare compression CQVD06100106 1.44 3.38
1/2" OD Flare compression CQVD06100108 1.44 3.37
3/8" Taper Male NPT CQVD06100206 1.44 2.70 1.00
TERMINATION 1/4" OD Flare compression CQVD06110104 1.82 3.24
PANEL MOUNT 3/8" OD Flare compression CQVD06110106 1.82 3.38
1/2" OD Flare compression CQVD06110108 1.82 3.37
3/8" Taper Male NPT CQVD06110206 1.82 2.70 1.00

CQV Coupling Inserts • PVDF

TERMINATION TUBING/THREAD SIZE TERMINATION TYPE SHUTOFF A B C
IN-LINE 1/4" OD Flare compression CQVD06200104 1.00 2.41
3/8" OD Flare compression CQVD06200106 1.00 2.57
1/2" OD Flare compression CQVD06200108 1.00 2.57
3/8" Taper Male NPT CQVD06200206 1.16 1.89 1.00

All measurements are in inches (millimeters) unless otherwise noted. Tubing must meet stated inside and outside diameters.
