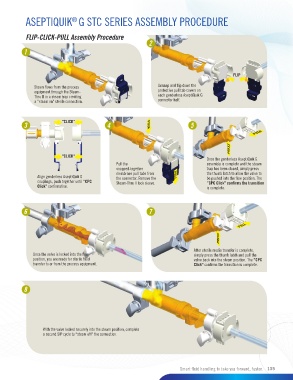

ASEPTIQUIK G STC SERIES ASSEMBLY PROCEDURE
®

FLIP-CLICK-PULL Assembly Procedure
2
1

FLIP

Steam flows from the process Unsnap and flip down the
equipment through the Steam- protective pull tab covers on
Thru II in a steam trap creating each genderless AseptiQuik G
a “steam on" sterile connection. connector half.

3 "CLICK" 4 PUSH 5
PUSH

PRESS

"CLICK"
Once the genderless AseptiQuik G
Pull the assembly is complete and the steam
snapped-together trap has been closed, simply press
membrane pull tabs from the thumb latch to allow the valve to
Align genderless AseptiQuik G the connector. Remove the PULL be pushed into the flow position. The
couplings, push together until “CPC Steam-Thru II lock sleeve. “CPC Click" confirms the transition
Click" confirmation. is complete.

6 7

PULL
PRESS

After sterile media transfer is complete,
Once the valve is locked into the flow simply press the thumb latch and pull the
position, you are ready for sterile fluid valve back into the steam position. The “CPC
transfer to or from the process equipment. Click" confirms the transition is complete.

8

With the valve locked securely into the steam position, complete
a second SIP cycle to “steam off" the connection.
