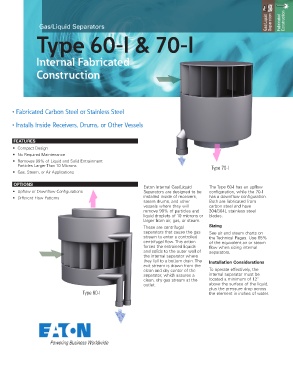

Page 19 - Eaton - Gas/Liquid separators

Gas/Liquid Separation Fabricated Construction

Gas/Liquid Separators
Type 60-I & 70-I

Internal Fabricated

Construction

• Fabricated Carbon Steel or Stainless Steel

• Installs Inside Receivers, Drums, or Other Vessels

FEATURES
• Compact Design
• No Required Maintenance
• Removes 99% of Liquid and Solid Entrainment
Particles Larger Than 10 Microns Type 70-I
• Gas, Steam, or Air Applications

OPTIONS
Eaton Internal Gas/Liquid The Type 60-I has an upflow
• Upflow or Downflow Configurations Separators are designed to be configuration, while the 70-I
• Different Flow Patterns installed inside of receivers, has a downflow configuration.
steam drums, and other Both are fabricated from
vessels where they will carbon steel and have
remove 99% of particles and 304/304L stainless steel
liquid droplets of 10 microns or blades.
larger from air, gas, or steam.
These are centrifugal Sizing
separators that cause the gas See air and steam charts on
stream to enter a controlled the Technical Pages. Use 65%
centrifugal flow. This action of the equivalent air or steam
forces the entrained liquids flow when sizing internal
and solids to the outer wall of separators.
the internal separator where
they fall to a bottom drain. The Installation Considerations
exit stream is drawn from the
clean and dry center of the To operate effectively, the
separator, which assures a internal separator must be
clean, dry gas stream at the located a minimum of 12”
outlet. above the surface of the liquid,
plus the pressure drop across
Type 60-I the element in inches of water.
