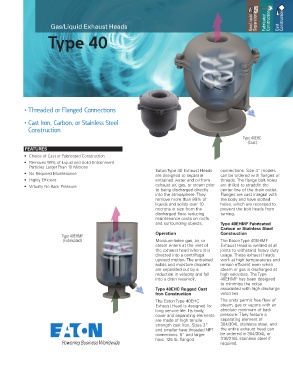

Page 29 - Eaton - Gas/Liquid separators

Gas/Liquid Separation Fabricated Construction Construction

Gas/Liquid Exhaust Heads Cast
Type 40

• Threaded or Flanged Connections

• Cast Iron, Carbon, or Stainless Steel
Construction
Type 40EHC
(Cast)
FEATURES
• Choice of Cast or Fabricated Construction
• Removes 99% of Liquid and Solid Entrainment
Particles Larger Than 10 Microns
• No Required Maintenance Eaton Type 40 Exhaust Heads connections. Size 4” models
can be ordered with flanges or
are designed to separate
• Highly Efficient entrained water and oil from threads. The flange bolt holes
• Virtually No Back Pressure exhaust air, gas, or steam prior are drilled to straddle the
to being discharged directly center line of the drain outlet.
into the atmosphere. They Flanges are cast integral with
remove more than 99% of the body and have slotted
liquids and solids over 10 holes, which are recessed to
microns in size from the prevent the bolt heads from
discharged flow, reducing turning.
maintenance costs on roofs
and surrounding objects. Type 40EHMF Fabricated
Carbon or Stainless Steel
Operation Construction
Type 40EHMF
(Fabricated) Moisture-laden gas, air, or The Eaton Type 40EHMF
steam enters at the inlet of Exhaust Head is welded at all
the exhaust head where it is joints to withstand heavy duty
directed into a centrifugal usage. These exhaust heads
upward motion. The entrained work at high temperatures and
solids and moisture droplets remain efficient even when
are separated out by a steam or gas is discharged at
reduction in velocity and fall high velocities. The Type
into a drain reservoir. 40EHMF has been designed
to minimize the noise
Type 40EHC Rugged Cast associated with high discharge
Iron Construction velocities.
The Eaton Type 40EHC The units permit free flow of
Exhaust Head is designed for steam, gas or vapors with an
long service life. Its body, absolute minimum of back
cover and separating elements pressure. They feature a
are made of high tensile separating element of
strength cast iron. Sizes 3” 304/304L stainless steel, and
and smaller have threaded NPT the entire exhaust head can
connections. 5” and larger be ordered in 304/304L or
have 125 lb. flanged 316/316L stainless steel if
required.
