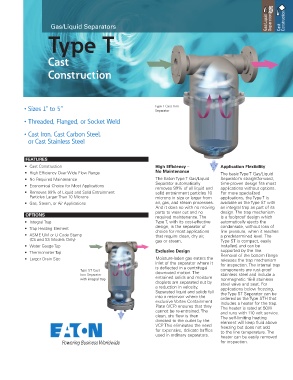

Page 3 - Eaton - Gas/Liquid separators

Gas/Liquid Separation Construction

Gas/Liquid Separators Cast
Type T

Cast

Construction

• Sizes 1” to 5” Type T Cast Iron
Separator
• Threaded, Flanged, or Socket Weld

• Cast Iron, Cast Carbon Steel,
or Cast Stainless Steel

FEATURES
• Cast Construction High Efficiency – Application Flexibility
• High Efficiency Over Wide Flow Range No Maintenance The basic Type T Gas/Liquid
• No Required Maintenance The Eaton Type T Gas/Liquid Separator’s straightforward,
• Economical Choice for Most Applications Separator automatically time-proven design fits most
removes 99% of all liquid and
applications without options.
• Removes 99% of Liquid and Solid Entrainment solid entrainment particles 10 For more specialized
Particles Larger Than 10 Microns microns in size or larger from applications, the Type T is
• Gas, Steam, or Air Applications air, gas, and steam processes. available as the Type ST with
And it does so with no moving an integral trap as part of its
parts to wear out and no design. The trap mechanism
OPTIONS required maintenance. The is a foolproof design which
• Integral Trap Type T, with its cost-effective automatically ejects the
• Trap Heating Element design, is the separator of condensate, without loss of
choice for most applications
line pressure, when it reaches
• ASME UM or U Code Stamp that require clean, dry air, a predetermined level. The
(CS and SS Models Only) gas or steam. Type ST is compact, easily
• Water Gauge Tap installed, and can be
• Thermometer Tap Exclusive Design supported by the line.
Removal of the bottom flange
• Larger Drain Size Moisture-laden gas enters the releases the trap mechanism
inlet of the separator where it for inspection. The internal trap
is deflected in a centrifugal
Type ST Cast downward motion. The components are rust-proof
Iron Separator stainless steel and include a
with integral trap entrained solids and moisture nonmagnetic 18-8 stainless
droplets are separated out by steel valve and seat. For
a reduction in velocity. applications below freezing,
Separated liquid and solids fall the Type ST Separator can be
into a reservoir where the ordered as the Type STH that
exclusive Vortex Containment includes a heater for the trap.
Plate (VCP) ensures that they The heater is rated at 50W
cannot be re-entrained. The and runs with 110 volt service.
clean, dry flow is then The self-limiting heating
directed to the outlet by the element will keep fluid above
VCP. This eliminates the need freezing but does not add
for expensive, delicate baffles to the line temperature. The
used in ordinary separators. heater can be easily removed
for inspection.
