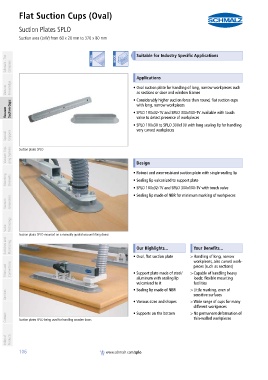

Flat Suction Cups (Oval)
Suction Plates SPLO
PA01019111_inh_EN.pdf Suction area (LxW) from 60 x 20 mm to 370 x 80 mm PA01019111_inh_EN.pdf

container
Schmalz - The Company Suitable for Industry Specific Applications

container
Applications
Vacuum Knowledge • Oval suction plate for handling of long, narrow workpieces such
as sections or door and window frames
• Considerably higher suction force than round, flat suction cups
with long, narrow workpieces
Vacuum Suction Cups • SPLO 100x32-TV and SPLO 300x100-TV available with touch
valve to detect presence of workpieces

• SPLO 100x30 to SPLO 300x100 with long sealing lip for handling
very curved workpieces
Special Grippers

Vacuum Grip- ping Systems Suction plates SPLO Design

container

• Robust and wear-resistant suction plate with single sealing lip
Mounting Elements • Sealing lip vulcanized to support plate

• SPLO 100x32-TV and SPLO 300x100-TV with touch valve
• Sealing lip made of NBR for minimum marking of workpieces
Vacuum Generators

Valve Technology

Suction plates SPLO mounted on a manually guided vacuum lifting device
Switches and Monitoring container Our Highlights... Your Benefits...

• Oval, flat suction plate >Handling of long, narrow
workpieces, also curved work-
Filters and Connections • Support plate made of steel/ >Capable of handling heavy
pieces (such as sections)

aluminum with sealing lip loads; flexible mounting
vulcanized to it facilities

Services • Sealing lip made of NBR >Little marking, even of
sensitive surfaces
• Various sizes and shapes >Wide range of cups for many
different workpieces
Contact Suction plates SPLO being used for handling wooden doors • Supports on the bottom >No permanent deformation of
thin-walled workpieces

Index of Products

106 www.schmalz.com/splo
