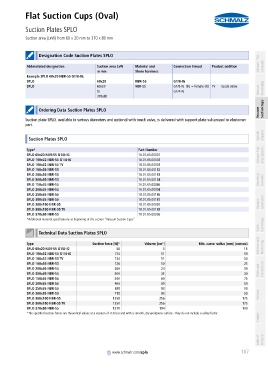

Flat Suction Cups (Oval)
Suction Plates SPLO
PA01019111_inh_EN.pdf Suction area (LxW) from 60 x 20 mm to 370 x 80 mm PA01019111_inh_EN.pdf

container

container Designation Code Suction Plates SPLO Schmalz - The
Abbreviated designation Suction area LxW Material and Connection thread Product addition Company
in mm Shore hardness
Example SPLO 60x20 NBR-55 G1/8-IG:
SPLO 60x20 NBR-55 G1/8-IG
SPLO 60x20 NBR-55 G1/8-IG (IG = female (F)) TV touch valve Knowledge
to G1/4-IG Vacuum
370x80

container
Vacuum
Ordering Data Suction Plates SPLO Suction Cups
Suction plate SPLO, available in various diameters and optional with touch valve, is delivered with support plate vulcanized to elastomer
container
part.
Special
container Grippers
Suction Plates SPLO
container
Type* Part Number
SPLO 60x20 NBR-55 G1/8-IG 10.01.05.00001 Vacuum Grip- ping Systems
SPLO 100x32 NBR-55 G1/4-IG 10.01.05.00002
SPLO 100x32 NBR-55 TV 10.01.05.00003
SPLO 100x30 NBR-55 10.01.05.00182
SPLO 200x30 NBR-55 10.01.05.00183
SPLO 300x30 NBR-55 10.01.05.00184 Mounting Elements
SPLO 150x55 NBR-55 10.01.05.00046
SPLO 200x55 NBR-55 10.01.05.00004
SPLO 250x55 NBR-55 10.01.05.00186
SPLO 300x55 NBR-55 10.01.05.00187
SPLO 300x100 NBR-55 10.01.05.00050 Vacuum Generators
SPLO 300x100 NBR-55 TV 10.01.05.00188
SPLO 370x80 NBR-55 10.01.05.00006
*Additional material specifications at beginning of the section "Vacuum Suction Cups"
Valve Technology
container
Technical Data Suction Plates SPLO
container
Type Suction force [N]* Volume [cm³] Min. curve radius [mm] (convex) Switches and
SPLO 60x20 NBR-55 G1/8-IG 50 3 15 Monitoring
SPLO 100x32 NBR-55 G1/4-IG 134 11 50
SPLO 100x32 NBR-55 TV 134 11 50
SPLO 100x30 NBR-55 126 10 25
SPLO 200x30 NBR-55 260 24 30 Filters and Connections
SPLO 300x30 NBR-55 400 32 30
SPLO 150x55 NBR-55 340 60 75
SPLO 200x55 NBR-55 465 80 50
SPLO 250x55 NBR-55 590 83 50
SPLO 300x55 NBR-55 710 93 50 Services
SPLO 300x100 NBR-55 1250 256 175
SPLO 300x100 NBR-55 TV 1250 256 175
SPLO 370x80 NBR-55 1270 194 100
*The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor
