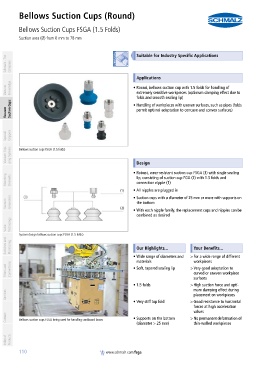

Bellows Suction Cups (Round)
Bellows Suction Cups FSGA (1.5 Folds)
PA01019111_inh_EN.pdf Suction area (Ø) from 6 mm to 78 mm PA01019111_inh_EN.pdf

container
Schmalz - The Company Suitable for Industry Specific Applications

container
Applications
Vacuum Knowledge • Round, bellows suction cup with 1.5 folds for handling of
extremely sensitive workpieces (optimum damping effect due to
folds and smooth sealing lip)

Vacuum Suction Cups • Handling of workpieces with uneven surfaces, such as pipes (folds
permit optimal adaptation to concave and convex surfaces)

Special Grippers

Vacuum Grip- ping Systems Bellows suction cups FSGA (1.5 folds) Design

container

• Robust, wear-resistant suction cup FSGA (3) with single sealing
Mounting Elements lip, consisting of suction cup FGA (2) with 1.5 folds and
connection nipple (1)

• All nipples are plugged in
Vacuum Generators • Suction cups with a diameter of 25 mm or more with supports on
the bottom
• With each nipple family, the replacement cups and nipples can be
combined as desired
Valve Technology

System design bellows suction cups FSGA (1.5 folds)
Switches and Monitoring container Our Highlights... Your Benefits...

• Wide range of diameters and >For a wide range of different
materials
workpieces
Filters and Connections • Soft, tapered sealing lip >Very good adaptation to
curved or uneven workpiece
surfaces
• 1.5 folds >High suction force and opti-
Services mum damping effect during
placement on workpieces
• Very stiff top fold >Good resistance to horizontal
forces at high acceleration
values
Contact Bellows suction cups FSGA being used for handling cardboard boxes • Supports on the bottom >No permanent deformation of

(diameter > 25 mm) thin-walled workpieces

Index of Products

110 www.schmalz.com/fsga
