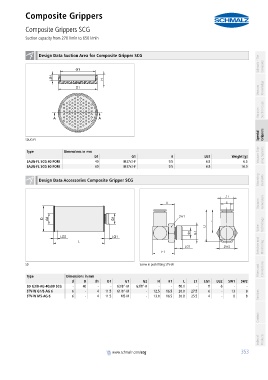

Composite Grippers
Composite Grippers SCG
PA01019111_inh_EN.pdf Suction capacity from 270 l/min to 650 l/min PA01019111_inh_EN.pdf

container

container Design Data Suction Area for Composite Gripper SCG Schmalz - The Company

Vacuum Knowledge

Vacuum Suction Cups

Special Grippers

SAUG-FL

container
Type Dimensions in mm
D1 G1 H LG1 Weight [g] Vacuum Grip- ping Systems
SAUG-FL SCG 40 POM 40 M37x1-F 9.5 6.5 6.5
SAUG-FL SCG 60 POM 60 M37x1-F 9.5 6.8 16.0
Mounting
container
Design Data Accessories Composite Gripper SCG Elements

container
Vacuum Generators

Valve Technology

Switches and Monitoring

Filters and Connections
SD Screw in push fitting STV-W
container
Type Dimensions in mm
d D dn D1 G1 G2 H H1 L L1 LG1 LG2 SW1 SW2
SD G3/8-AG 40x80 SCG - 40 - - G3/8"-M G3/8"-F - - 80.0 - 8 6 - -
STV-W G1/8-AG 6 6 - 4 11.5 G1/8"-M - 12.5 16.5 20.8 27.5 6 - 13 8
STV-W M5-AG 6 6 - 4 11.5 M5-M - 13.0 16.5 20.8 25.5 4 - 8 8 Services

Contact

Index of Products

container
www.schmalz.com/scg
