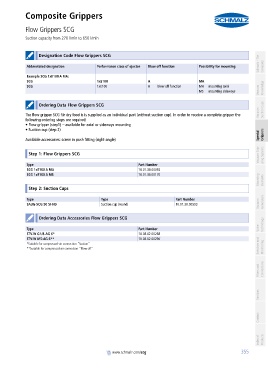

Composite Grippers
Flow Grippers SCG
PA01019111_inh_EN.pdf Suction capacity from 270 l/min to 650 l/min PA01019111_inh_EN.pdf

container

container Designation Code Flow Grippers SCG Schmalz - The
Abbreviated designation Performance class of ejector Blow off function Possibility for mounting Company
Example SCG 1xE100 A MA:
SCG 1xE100 A MA
SCG 1xE100 A blow off function MA mounting axial Knowledge
MS mounting sideways Vacuum

container
Ordering Data Flow Grippers SCG
Vacuum Suction Cups
The flow gripper SCG für dry food is is supplied as an individual part (without suction cup). In order to receive a complete gripper the
container
following ordering steps are required:
• Flow gripper (step1) – available for axial or sideways mounting
• Suction cup (step 2)
Special Grippers
Available accessories: screw in push fitting (right-angle)
Vacuum Grip- ping Systems
container
Step 1: Flow Grippers SCG
container
Type Part Number
SCG 1xE100 A MA 10.01.30.00092
Mounting Elements
SCG 1xE100 A MS 10.01.30.00170
container
Step 2: Suction Cups

container
Type Type Part Number
SAUG-SCG 50 SI-HD Suction cup (round) 10.01.30.00593 Vacuum Generators

container
Ordering Data Accessories Flow Grippers SCG
Valve
container Technology
Type Part Number
STV-W G1/8-AG 6* 10.08.02.00288
Switches and
STV-W M5-AG 6** 10.08.02.00296
*Suitable for compressed-air connection "Suction"
**Suitable for compressed-air connection "Blow off" Monitoring

Filters and Connections

Services

Contact

Index of Products

container
www.schmalz.com/scg
